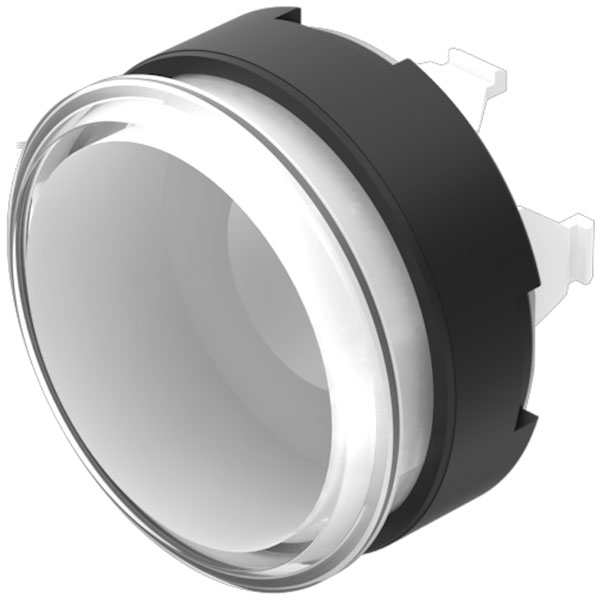

EAO 84-1091.7 is an illuminated pushbutton-actuator that is colourless and designed for use in various industrial applications. This component offers reliable performance in control panels where a visual indication is required for operation feedback. Its colourless design allows for versatile integration with custom lighting solutions, enabling users to assign specific colours for different operational states, thus enhancing user interaction in complex systems. These pushbutton actuators are typically utilised in environments such as automation systems, transportation dashboards, and machinery control systems.
| Type |
Pushbutton actuator |
| IP Rating |
Ip65, Ip67 |
| Approbations |
Ebc (tsi Prm), Nff |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs) |
| Design |
Flush |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
De |
| Front Bezel Colour |
White |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 25mm |
| Front Form |
Round |
| Lens Illumination |
Illuminated |
| Mechanical Lifetime |
=1 Mil. Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 70°C |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Switching System |
Short-travel Element |
| Weight |
0.00793 |
