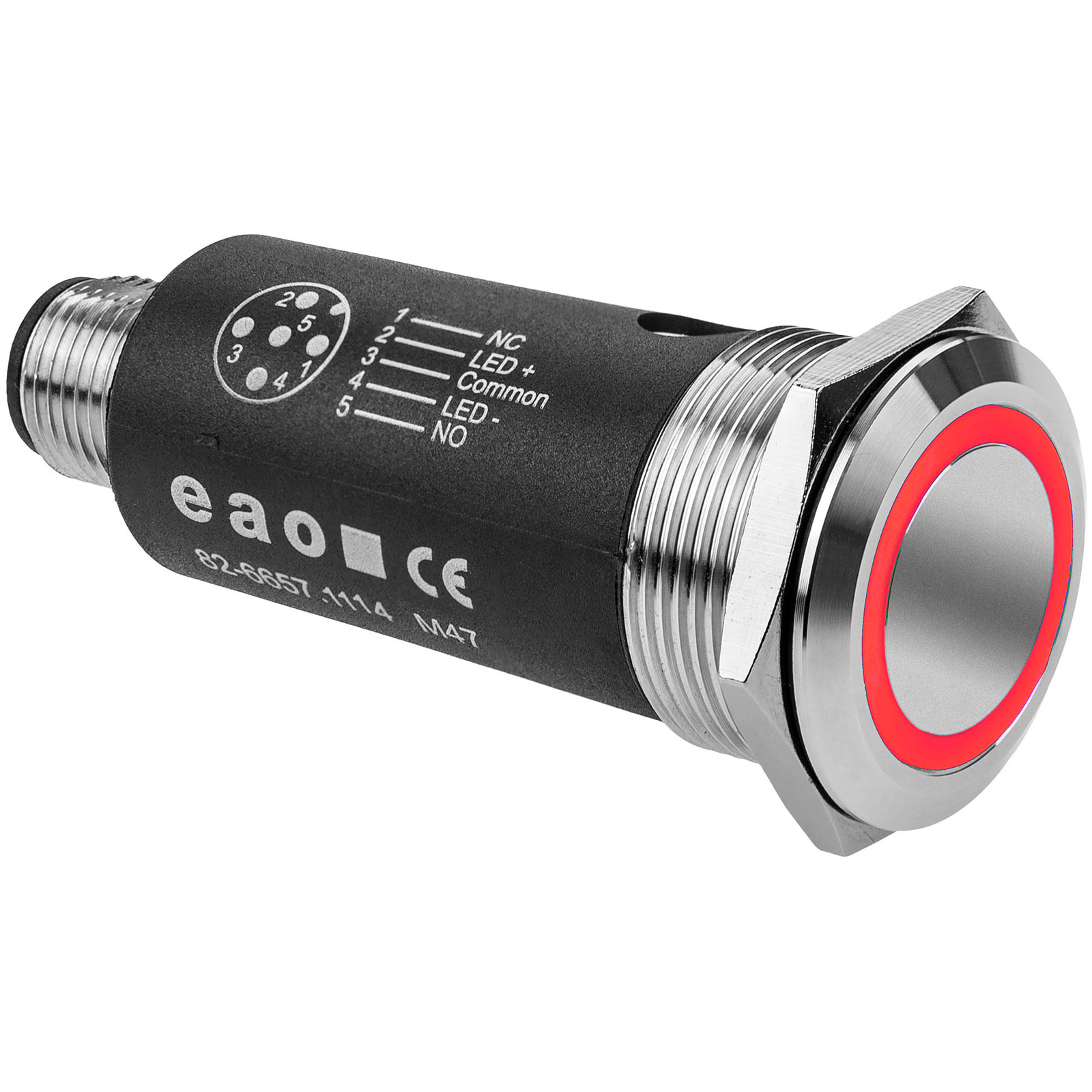

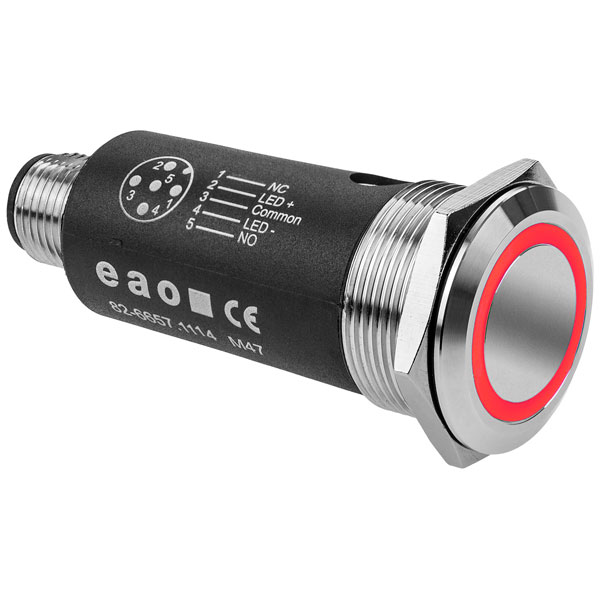

EAO 82-6657.1114 Series 82 Illuminated Pushbutton Momentary 22mm SUS 316L Red

The EAO Series 82 features a 316L stainless steel, momentary 22mm flush push button with red LED illumination. This push button is IP65|IP67 rated and has a 5 pin M12 type connector.

With Series 82, EAO offers the ideal pushbutton for vandal-resistant, stylish HMI controls used in harsh industrial environments, public areas and access control.

With their robust stainless steel, brass or anodised aluminium housings, these innovatively designed switches are protected according to IK10 impact resistance and IP65/IP67 sealing requirements, which makes them ideally suited for exposed public use and industrial applications.

• Switching Action: Momentary
• Contact Configuration: SPST-NO, SPST-NC
• Function: Panel Mount Push Button
• Switching Voltage: 35V
• Operating Voltage: 24V DC
• Connector Type: M12 (5 pin)
• Housing Material: 316L Stainless Steel
• Button Material: 316L Stainless Steel
• Button Colour: Silver
• Illumination Colour: Red LED
• Button Diameter: Ø 24.8 mm
• Mounting cut-out: Ø 22 mm
• IP protection: IP65|IP67
