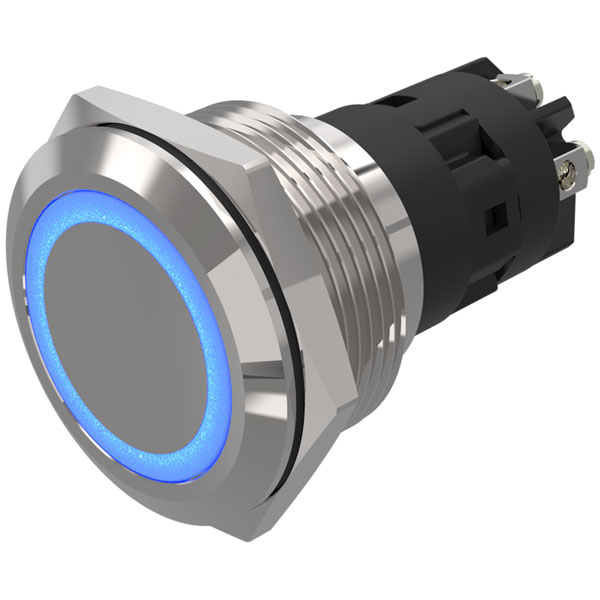

EAO 82-6552.2123 22mm Illum PB Alu Flush/flush Screw Maint Ag Ring Blue 12VAC/DC

EAO 82-6552.2123 is a 22 mm illuminated pushbutton fabricated from aluminium, featuring a flush/flush design. This pushbutton operates on a maintained mechanism and is equipped with screw terminals for secure electrical connections. It is designed with silver contacts and an illumination ring, emitting a blue light, suitable for operation at 12 V AC/DC. The device is typically employed in industrial control panels, machinery interfaces, and other applications requiring reliable human-machine interaction.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Current Rating	3A
Mounting	Panel
Illumination	Blue
Panel Cutout Dimensions	22
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Material	Aluminium
Front Bezel Shape	Flush
Front Dimension Concat	Ø 25mm
Front Form	Round
Illumination Colour Concat	Blue
Ip Front Protection	Ip65, Ip67
Lens Colour	Nature
Lens Illumination	Illuminated
Lens Material	Aluminium
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	12 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	12 V
Operating Voltage Concat	12 V Ac/dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Maintained
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
