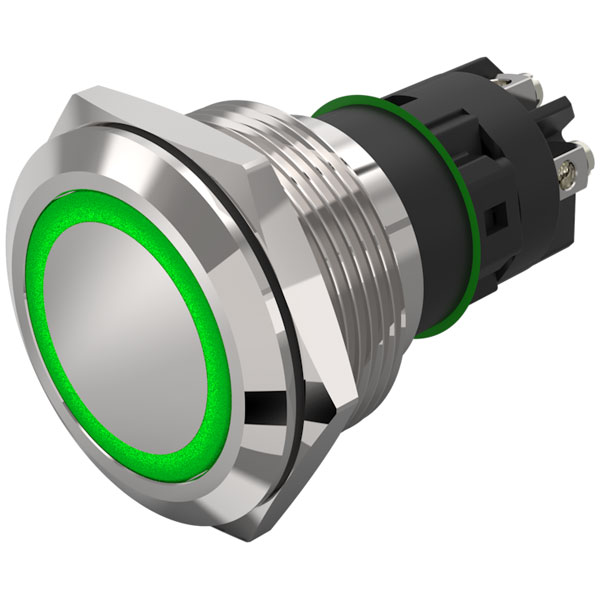

EAO 82-6152.1134 Illum PB Mom. 22.5mm St.Steel flush/flat Ring green 24V screw

EAO 82-6152.1134 is an illuminated pushbutton featuring a momentary action suitable for a wide range of industrial applications. The device has a 22.5mm stainless steel flush/flat ring design, providing a robust and reliable interface with an aesthetically pleasing appearance. This variant is distinguished by its green illumination and is powered by a 24V source, making it optimal for systems requiring visual feedback from user interactions. Connections are facilitated via screw terminals.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Switch Function	Off-(On)
Current Rating	3A
Mounting	Panel
Illumination	Green
Panel Cutout Dimensions	22.5
Approbations	Cb, Ccc, C Ul, Ul
Climate Resistance	Damp Heat, 21 Days According To Iec 60512-11
Conformities	Ce, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd)
Contacts Concat	1 C
Contacts Material	Silver
Electrical Lifetime	50 000 Cycles Of Operation
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Cn
Front Bezel Material	Stainless Steel
Front Bezel Shape	Flush
Front Dimension Concat	Ø 25mm
Front Form	Round
Illumination Colour Concat	Green
Ip Front Protection	Ip65, Ip67
Lens Colour	Silver
Lens Illumination	Illuminated
Lens Material	Stainless Steel
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Concat	24 V / 7mA
Operating Current Concat	7mA
Operating Temperature	– 30 °c … + 70°C
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Ac/dc
Output Hsd	Yes
Pollution degree	2, According To En Iec 60947-1
Shock Resistance	Max. 500 M / S² As Per Iec 60068-2-27
Switching Action Concat	Momentary
Switching System	Snap-action Switching Element
Terminal Concat	Screw terminal
Thermal Current Ith	5 A
Vibration Resistance	10 … 500 Hz, Amplitude 1.5 Mm P-p According To Iec 60068-2-6
Weight	0.018
