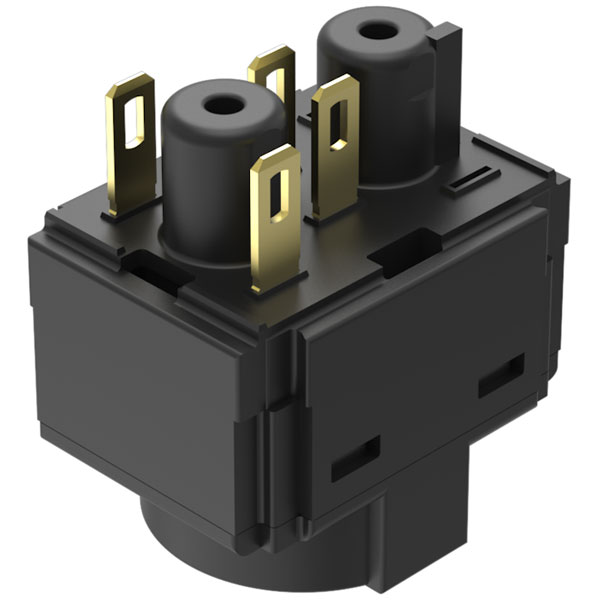

EAO 61-8610.37 is a switching element known for its slow-make action, featuring a 1 normally open (NO) single throw (ST) configuration with gold contacts. This component is engineered to ensure precise control in low current applications, benefiting from the reliability provided by gold contacts which resist oxidation and maintain low contact resistance over time. Designed for demanding environments, the 61-8610.37 is typically utilised in control panel assemblies, instrumentation, and signalling devices.
| Type |
Switch element |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 No |
| Contacts Material |
Gold |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Material |
Plastic, According To Ul 94 V0 |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 61058-1 |
| Rotary Positions |
2 Positions |
| Shock Resistance |
Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27) |
| Switching System |
Slow-make Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
3 A |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, (sinusoidal En Iec 60068-2-6) |
| Weight |
0.00783 |
