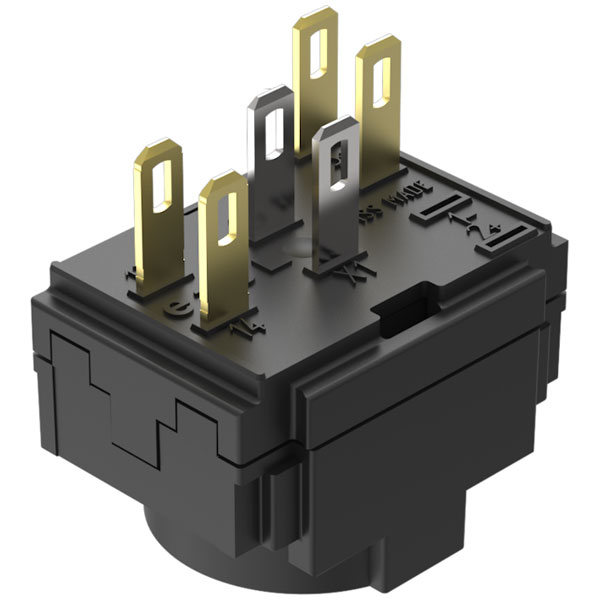

EAO 61-8450.22 is a snap-action switching element designed for precise control in various industrial applications. This component features a robust SA 2NC ST/PT gold/silver contact configuration, offering high conductivity and durability essential for reliable electrical connections. It is typically used in environments requiring rapid and repeatable actuation, such as in control panels, automation equipment, and machinery where accurate switching is critical. The integration of gold and silver contacts ensures low resistance and excellent corrosion resistance.
| Type |
Switch element |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul, Vde |
| Climate Resistance |
Damp Heat, Cyclic: 96 Hours, + 25 °c/97 %, + 55 °c/93 % Relative Humidity, As Per En Iec 60068-2-30 | Damp Heat, Steady: 56 Days, + 40 °c/93 % Relative Humidity, According To En Iec 60068-2-78 | Rapid Change Of Temperature: 100 Cycles, – 40 °c … + 80 °c, As Per En / Iec 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
2 Nc |
| Contacts Material |
Gold |
| Electrical Lifetime |
=50 000 Cycles Of Operation At 250vac, 2a, Cosf 0.95, |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Material |
Plastic, According To Ul 94 V0 |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Pollution degree |
2, According To En Iec 60947-1 |
| Protection Class |
Ii, According To En / Iec 61058-1 |
| Rotary Positions |
2 Positions |
| Shock Resistance |
Max. 100 M / S², Pulse Width, 3-axis (sinusoidal En Iec 60068-2-27) |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Thermal Current Ith |
5 A |
| Vibration Resistance |
Max. 100 M / S² From 10 Hz ... 500 Hz, (sinusoidal En Iec 60068-2-6) |
| Weight |
0.00831 |
