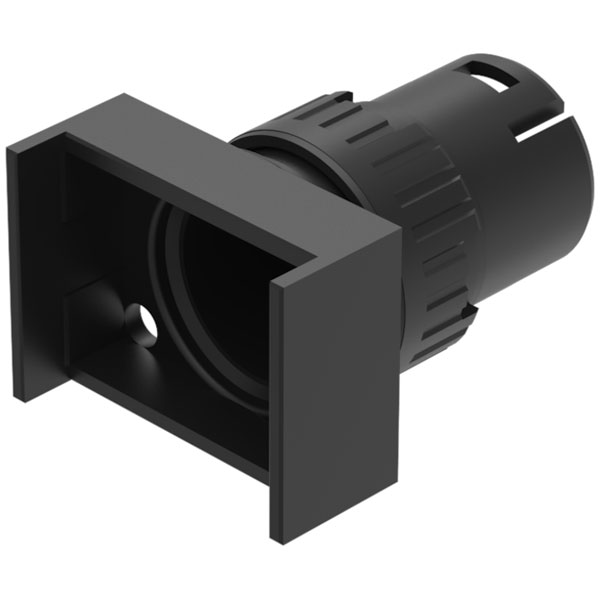

EAO 61-1330.0 Illuminated pushbutton-actuator mom/main 18x24

EAO 61-1330.0 is an illuminated pushbutton actuator designed for use in various industrial and commercial applications. This robust component features a momentary switching function, providing reliable and precise control within complex systems. The actuator is designed with dimensions of 18x24 mm, allowing it to fit within compact panel configurations while offering a high degree of durability and consistent performance. It is commonly utilised in automated machinery, control panels, and other environments requiring rigorous operational standards.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	Off-(On)
Mounting	Panel
Illumination	Clear
Panel Cutout Dimensions	16.2
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Lens Illumination	Illuminated
Mechanical Lifetime	According To Din/iec 60512-5-6 And En/iec 60947-5-1, 1 Mil. Cycles Of Operation (maintain), 2 Mil. Cycles Of Operation (momentary)
Mounting Cut Out Dps Concat	Ø 16mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Switching Action Concat	Maintained Or Momentary
Weight	0.00455
