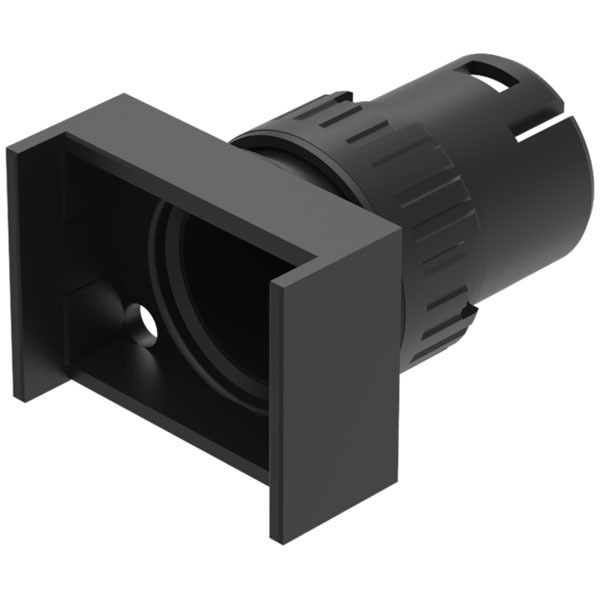

EAO 61-1230.0 Illuminated pushbutton-actuator main 18x24

EAO 61-1230.0 is an illuminated pushbutton-actuator that features a main dimension of 18x24 mm. This component is designed to provide reliable operation within industrial and commercial environments where visual indication and control are essential. Its compact design allows for integration into tight spaces, offering versatility for system designers. Common applications include control panels, user interfaces, and automated machines where illumination aids in indicating operational status. The robust construction ensures durability and long-term performance under various operational conditions.

Type	Pushbutton
Contact Configuration	SPNO
Switch Function	N/A
Mounting	Panel
Illumination	Clear
Panel Cutout Dimensions	16.2
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Lens Illumination	Illuminated
Mechanical Lifetime	According To Din/iec 60512-5-6 And En/iec 60947-5-1, 1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 16mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Switching Action Concat	Maintained
Weight	0.00455
