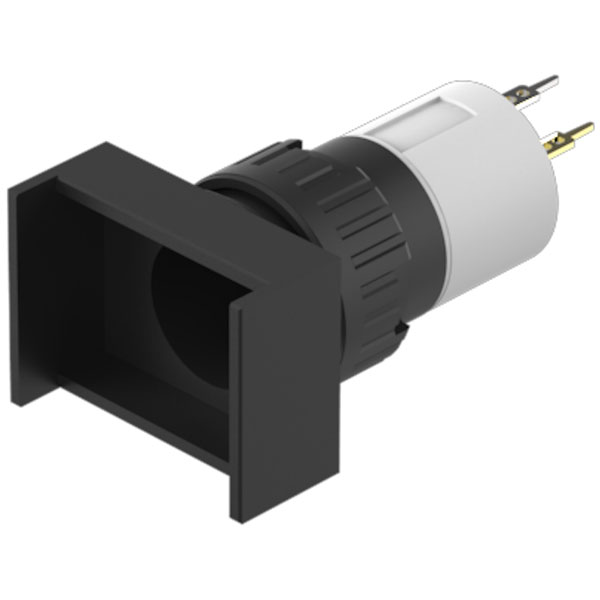

EAO 51-425.036 Illuminated pushbutton mom LL 1NO UT 18x24 gold

EAO 51-425.036 is an illuminated pushbutton switch designed for applications requiring a momentary action with a gold finish. This pushbutton features a maintained electrical architecture with configurations of one normally open (1NO) contact, suitable for integrating into control panels and user-interface systems in industrial automation settings. The device incorporates an 18x24 mm actuator, providing a balance between compactness and visibility, making it ideal for environments where space is at a premium yet operational clarity is critical.

Type	Pushbutton
Contacts Concat	1 No
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	24 Mm X 18 Mm
Front Form	Rectangular
Ip Front Protection	Ip65, According To Din En 60529
Lens Illumination	Illuminated
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55 °c, Mounted As A Block, Make Sure The Heat Can Escape Freely
Output Hsd	Yes
Shock Resistance	15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal)
Switching Action Concat	Momentary
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.00709
