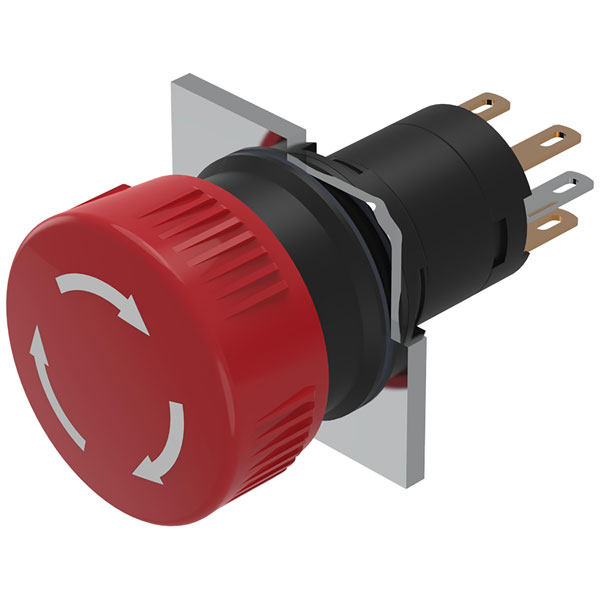

The EAO Series 51 features a latched stop switch actuator which has a plastic housing and red mushroom head switch. This stop switch is IP65 rated and has a switching rating of 250V @ 5A.
Attractive and compact. The EAO Series 51 Switch Range is an oil and watertight, high-quality switch range that includes pushbuttons, indicators, illuminated selector switches, key locks, and "mono-block" stop switches.
- Switching Action: Latching
- Function: Stop Switch
- Switching Current: 5A
- Contacts: 1 NC | 1 NO
- Contact Material: Gold
- Housing Material: Plastic
- Housing Colour: Black
- Button Material: Plastic
- Button Colour: Red
- Button Diameter: Ø 24.5 mm
- Mounting cut-out: Ø 16.2 mm
- Front IP protection: IP65
- Weight 0.011 kg
| Type |
Twist Release |
| Switch Function |
Maintained |
| Voltage Rating |
250V |
| Current Rating |
5A |
| Approbations |
Cb (iec 61058-1), Csa, Enec (en 61058-1), Ul |
| Button Colour |
Red |
| Conformities |
Ce, Ukca, 2006 / 42 / Ec (md), 2011 / 65 / Ec (rohs) |
| Contacts |
1 NC | 1 NO |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Design |
Raised |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 24,5mm |
| Front Form |
Round |
| Function |
Stop Switch |
| Ip Front Protection |
Ip65, According To Din En 60529 |
| Lens Colour |
Red |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Mushroom-head |
| Mechanical Lifetime |
100 000 Cycles Of Operation |
| Operating Temperature |
– 25 °c … + 55 °c |
| Output Hsd |
Yes |
| Release Type |
Twist To Unlock |
| Switching Action Concat |
Maintained |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Plug-in terminal, 2.8 X 0.5 Mm |
| Weight |
0.01593 |
