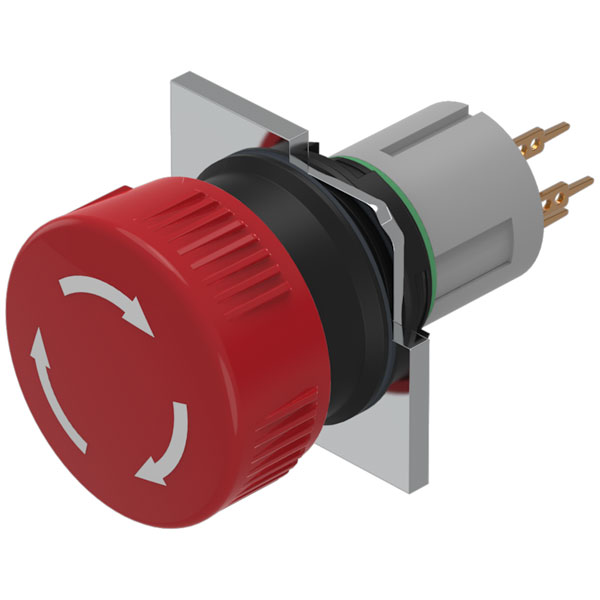

EAO 51-252.026 Stop switch with twist release red LL 2NC U D25 gold

EAO 51-252.026 Stop switch is an industrial control component designed for safety-critical applications. This switch features a red actuator with a twist release mechanism and is equipped with two normally closed (2NC) contacts, ensuring reliable stopping functions in emergency situations. The unit conforms to standard diameters of 25 mm, offering compatibility with a wide range of control panels and enclosures. Engineered with gold contacts, it provides enhanced conductivity and corrosion resistance, making it suitable for use in demanding environments.

Type	Stop Switch
Contacts Concat	2 Nc
Contacts Material	Gold
Design	Raised
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	Ch
Front Dimension Concat	Ø 24,5mm
Front Form	Round
Ip Front Protection	Ip65, According To Din En 60529
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Release Type	Twist To Unlock
Switching Action Concat	Maintained
Switching System	Low-level Element
Terminal Concat	Universal Terminal, 2 X 0.5 Mm
Weight	0.01496
