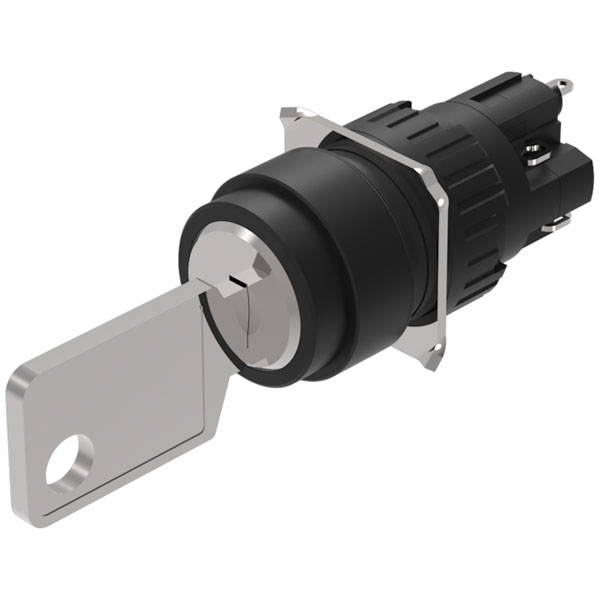

EAO 51-135.025D2 is a keylock switch offering two operational positions, designed for reliable use in engineering systems. This switch includes both normally closed (1NC) and normally open (1NO) contacts, providing versatility in circuit control. The gold/silver construction enhances conductivity and durability, making it suitable for high-reliability environments. It is designed for main applications with an M22 mounting cut-out, making it compatible with standard panel installations.
| Type |
Key Switch |
| Approbations |
Cb (iec 61058-1), Cqc, Csa, Dnv, Enec (en 61058-1), Ul |
| Climate Resistance |
Standard Condition, As Per Din En 60068-2-30 | Changing Condition, As Per Din En 60068-2-14 |
| Conformities |
Ce, Ukca, 2011 / 65 / Ec (rohs), 2014 / 30 / Eu (emc), 2014 / 35 / Eu (lvd) |
| Contacts Concat |
1 Nc / 1 No |
| Contacts Material |
Gold |
| Design |
Raised |
| Electrical Lifetime |
50 000 Cycles Of Operation |
| Erp Ehq Custom Number |
8536.5000 |
| Erp Ehq Source Country |
Ch |
| Front Dimension Concat |
Ø 18mm |
| Front Form |
Round |
| Ip Front Protection |
Ip65, According To Din En 60529 |
| Max No Modules |
4 |
| Mechanical Lifetime |
50 000 Cycles Of Operation |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
15 G For 11 Ms, As Per Din / En 60512-4-3, Din / En 60068-2-27 (single Impacts, Semi-sinusoidal) |
| Switching Action Concat |
Rest (a) - Maintained (a) |
| Switching Angle Rotation Concat |
90° Right |
| Switching System |
Snap-action Switching Element |
| Terminal Concat |
Soldering terminal |
| Thermal Current Ith |
5 A, According To En / Iec 60947-5-1 | The Maximum Current In Continuous Operation And At Ambient Temperature Not Exceeding The Quoted Maximum Values. |
| Vibration Resistance |
10 G At 10 Hz…1500 Hz, Amplitude 0.75 Mm (sinusoidal), According To Din En 60512-4-4, Din En 60068-2-6 |
| Weight |
0.0167 |
