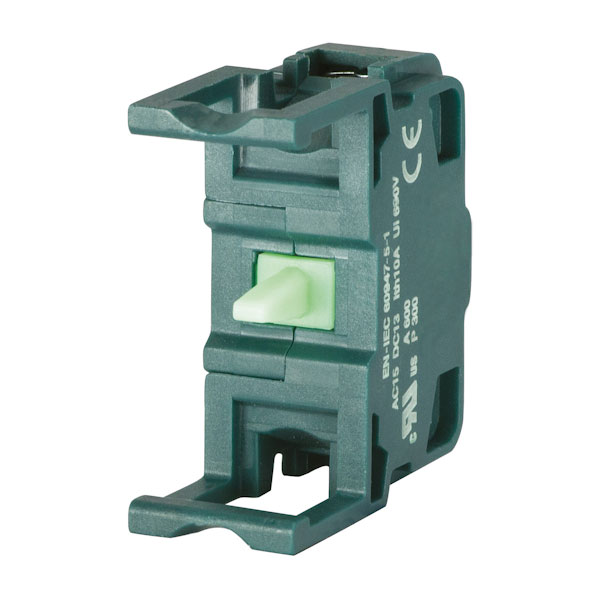

EAO 46-311.1Z70 Contact block N.O., ring lug

EAO 46-311.1Z70 is a Contact block with a Normally Open (N.O.) configuration, designed to facilitate reliable electrical connections in control systems. Its robust design ensures durability and this particular model is equipped with a ring lug termination, enhancing security and stability in connections by accommodating a wide range of conductor sizes typically used in industrial applications. The block is engineered to deliver precise performance in environments such as factory automation, machinery control panels, and instrumentation circuits.

Type	Contact block
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Colour	Green
Conformities	Ce
Contacts Concat	1 No
Contacts Material	Silver
Erp Ehq Custom Number	8536.5000
Erp Ehq Source Country	It
Material	Plastic
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Pollution degree	3
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching System	Slow-make Switching Element
Terminal Concat	Ring Cable Lug Screw Terminal
Thermal Current Ith	10 A (iec-en60947-1)
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.010552
