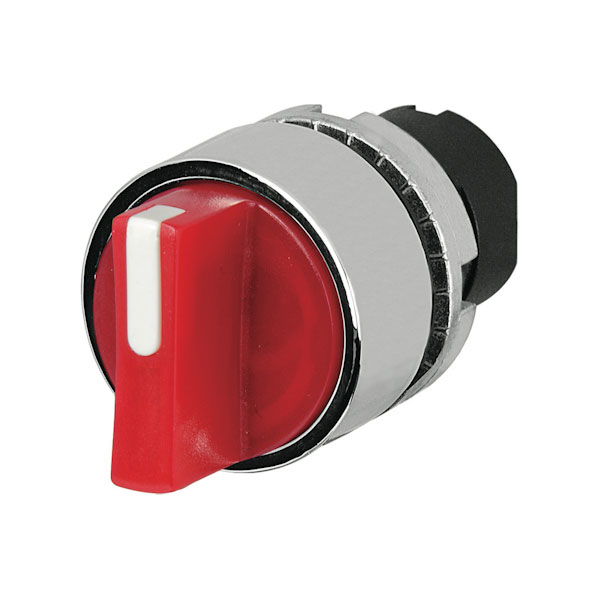

EAO 46-2W44.3CP0.001 is a knob selector switch characterised by its two-position configuration and an illuminated red indicator. This component features Cam A and a spring return mechanism, enabling reliable and precise manual control for switching operations. Designed for industrial applications, this switch is typically employed in control panels, machinery interfaces, and equipment requiring clear, unambiguous user input. Its robust design ensures durability and consistent performance under various operational conditions, aligning with the demands of engineering environments.
| Type |
Selector Switch |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Metal |
| Front Dimension Concat |
Ø 30mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Red |
| Lever Shape |
Short |
| Max No Modules |
2 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Momentary |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.038 |
