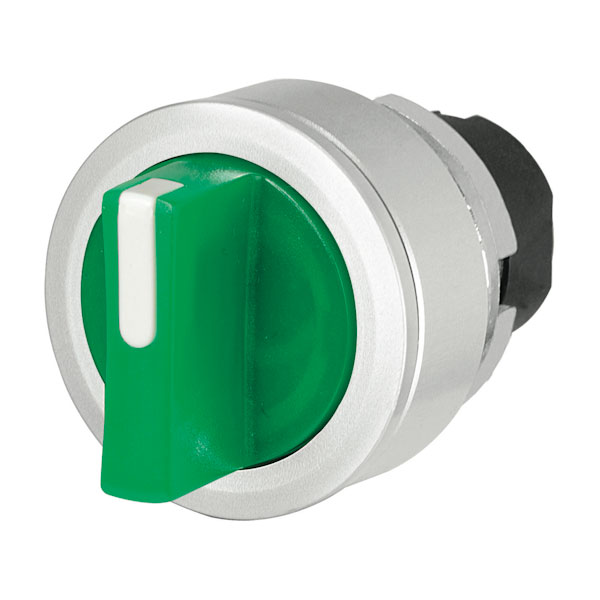

EAOs 46-2W28.4CH0.001 knob selector switch is a robust component designed for precise control in various industrial applications. This switch features an illuminated green indicator and a flush-mount design, ensuring easy integration into control panels while providing clear operational visibility. With its two-position mechanism and Cam A functionality, it is particularly suited for situations requiring straightforward on-off control or selection between two states. Typical applications include machinery operation interfaces, transport systems, and automated process equipment.
| Type |
Selector Switch |
| Approbations |
Csa, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Flush |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Aluminium |
| Front Dimension Concat |
Ø 35mm |
| Front Form |
Round |
| Ik Front Protection |
Ik04 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Green |
| Lever Shape |
Short |
| Max No Modules |
4 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
L |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.036 |
