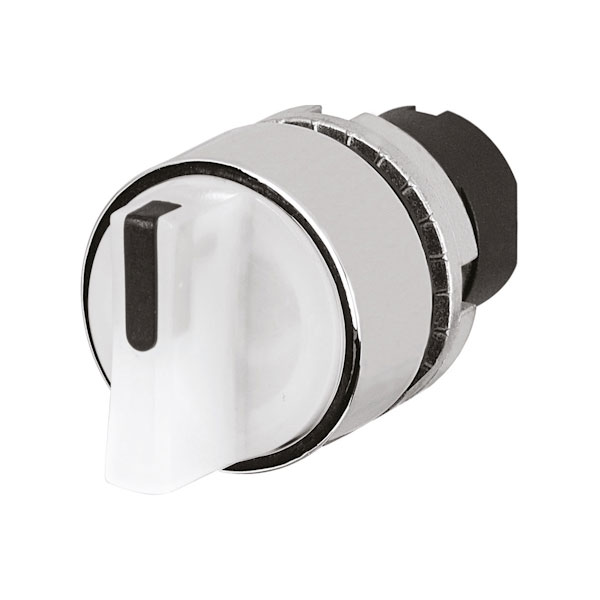

EAO 46-2W28.3CV0.001 Selector switch illuminated white 2-position Cam A metal

EAO 46-2W28.3CV0.001 is an illuminated knob selector switch designed for precision control applications. This switch features a robust metal construction with a white, illuminated knob, offering clear visibility and enhanced durability in demanding environments. It is equipped with a two-position Cam A mechanism, facilitating straightforward selection between two discrete operating states. Common applications include industrial machinery, control panels, and automation systems, where reliable manual input is crucial.

Type	Selector Switch
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 30mm
Front Form	Round
Ik Front Protection	Ik03
Ip Front Protection	Ip65
Lever Bar Colour	Black
Lever Colour	White
Lever Shape	Short
Max No Modules	2
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest - Maintained
Switching Angle Rotation Concat	90°
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.038
