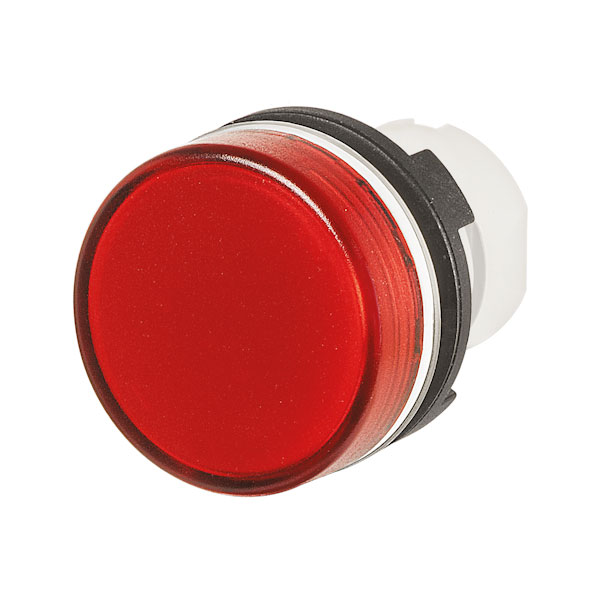

EAO 46-2T00.10E0.000 Modular pilot light, red

EAO 46-2T00.10E0.000 is a modular pilot light designed for use in control panels and industrial applications where reliable visual indication is essential. This red pilot light is engineered to deliver consistent performance under various environmental conditions, ensuring high visibility in operational settings. It features robust construction suitable for integration within complex electrical systems, enhancing the user interface of machinery and equipment. Commonly utilised in automation systems, this pilot light supports straightforward installation and replacement, thus making it a preferred choice.

Type	Pilot Light
Lamp/Lens Colour	Red
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	White
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Illumination Colour Concat	Red
Ip Front Protection	Ip65
Lens Cap Colour	Red
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.009
