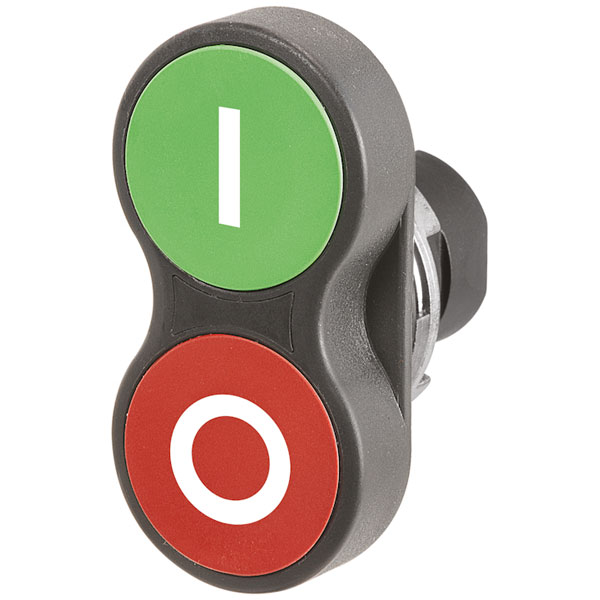

EAO 46-2J31.15T0.000 Twin push-button I/O, red-green

EAOs 46-2J31.15T0.000 Twin push-button I/O, red-green, offers a reliable interface solution for control panels and industrial machinery. This component features a robust dual-button configuration with distinct red and green indicators, facilitating clear visual feedback for operational commands. Engineered for durability and precision, it is well-suited for environments demanding high-frequency use, such as factory automation, transportation systems, and process control. Its construction ensures a long lifespan and resistance to mechanical wear.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	58 Mm X 29 Mm
Front Form	Rectangular
Ik Front Protection	Ik03
Lens Colour	Green-red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.025
