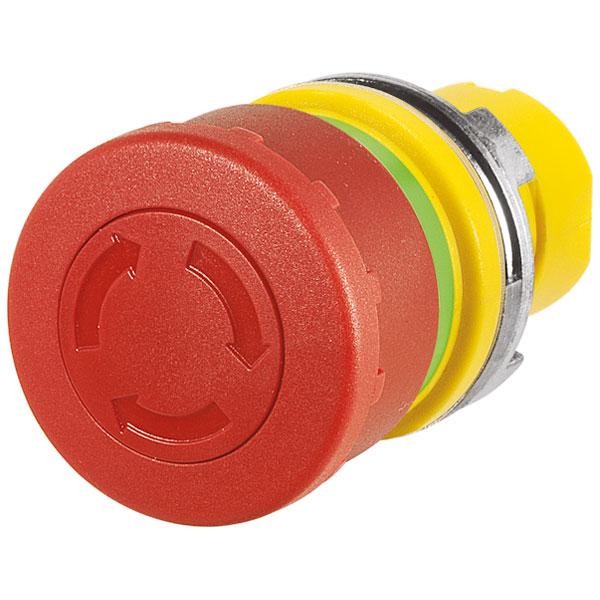

EAO 46-2C36.1M20.000 Mushroom push-button Ø 32, twist release, red

EAO 46-2C36.1M20.000 refers to a mushroom push-button switch with a twist release mechanism, featuring a distinctly red actuator with a 32 mm diameter. This component is engineered for high visibility and safety in critical emergency stop applications, where immediate cessation of machinery operation is necessary. Its robust design ensures reliable performance in industrial environments, where it can be deployed on control panels for manufacturing equipment, conveyor belts, or any machinery requiring an accessible emergency stop function.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Dimensions Concat	Ø 32mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Dimension Concat	Ø 32mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	4
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Release Type	Twist To Unlock
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Iec En 60947-5-5, Ul508, Uni En Iso 12100, Uni En Iso 13850
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.034307
