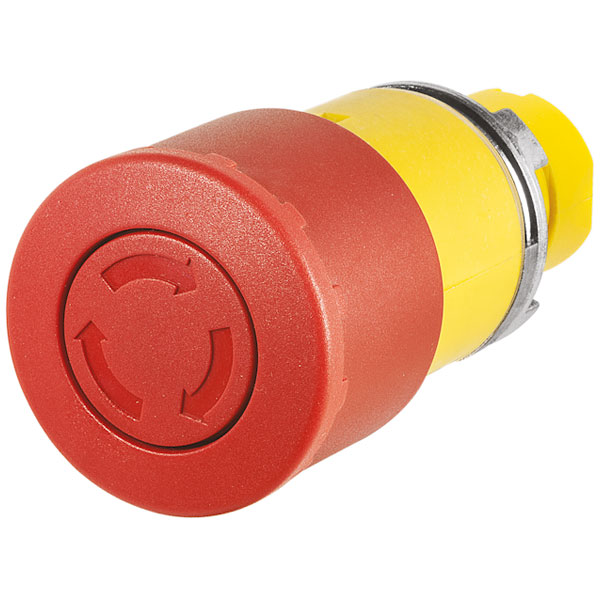

EAO 46-2C36.1H20.000 Mushroom push-button Ø 42, twist release, red

EAO 46-2C36.1H20.000 is a red mushroom push-button characterised by a diameter of 42 millimetres and equipped with a twist release mechanism. This component is designed for applications where emergency stop functions are crucial, ensuring reliable operation in industrial control panels and machinery safety systems. The twist release mechanism provides an intuitive method for resetting the button after activation, making it suitable for environments where quick, decisive action is required. Typically used in manufacturing facilities and automated systems.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Dimensions Concat	Ø 42mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Dimension Concat	Ø 42mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	4
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Release Type	Twist To Unlock
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Iec En 60947-5-5, Ul508, Uni En Iso 12100, Uni En Iso 13850
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.055
