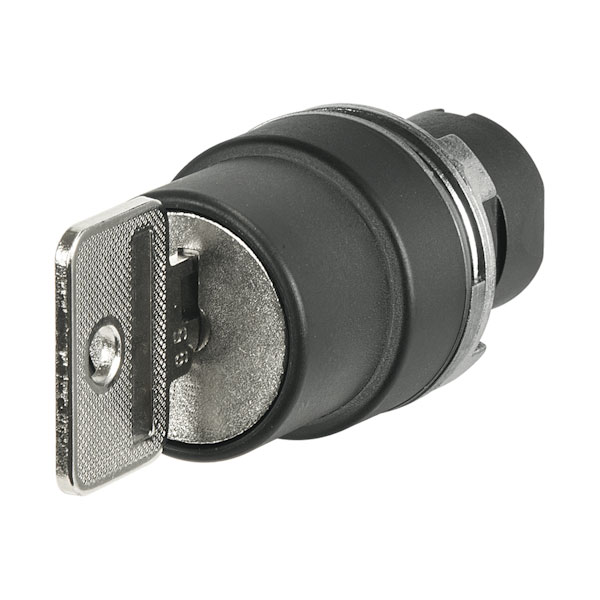

EAO 46-290J.1000.7P8 Key switch 2-position K95 key Cam B key removal 0

EAO 46-290J.1000.7P8 is a key selector switch featuring two distinct positions, providing reliable functionality in applications requiring secure, keyed operation. This model utilises a K95 key and Cam B configuration, allowing for precise control and versatility in a range of industrial environments. The design permits key removal in the 0 position, enhancing security by ensuring the switch can be locked in the off state when required. Commonly utilised in control panels and automation systems where controlled operation access is required.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest (a) - Maintained
Switching Angle Rotation Concat	60° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
