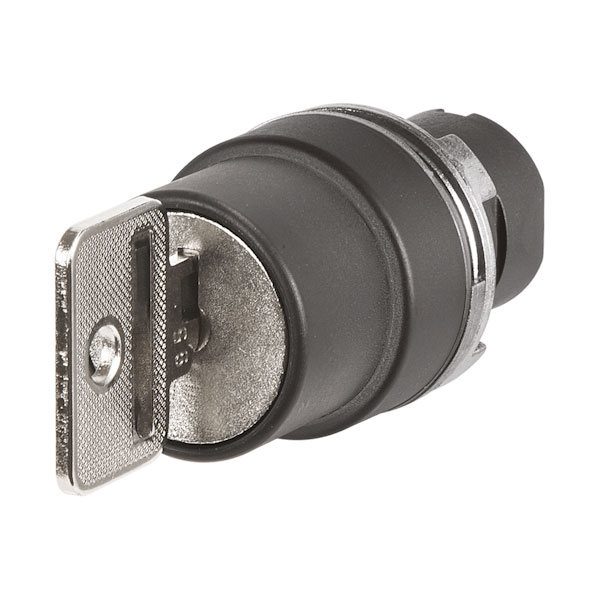

EAO 46-290H.1000.7P8 Key switch 2-position K95 key Cam B key removal 0-II

EAO 46-290H.1000.7P8 refers to a key selector switch designed with precision for secure control applications. This switch features a two-position operation, facilitated by the K95 key, which guarantees reliable user access. It incorporates Cam B configuration and is engineered to allow key removal in both 0 and II positions, ensuring versatility in various operational scenarios. These switches are typically used in industrial equipment, control panels, and machinery where the control of electrical circuits needs controlled access.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	2 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Rest (a) - Maintained (a)
Switching Angle Rotation Concat	60° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
