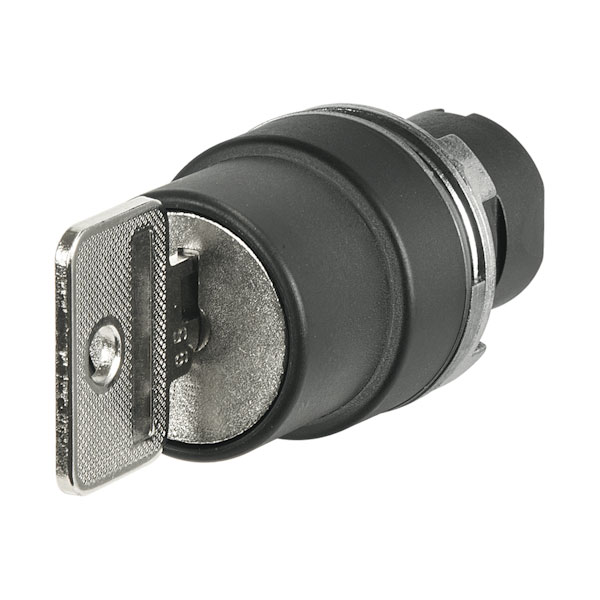

EAO 46-290F.1000.7P8 Key switch 3-position K95 key Cam O key removal I-0-II

EAO 46-290F.1000.7P8 is a key selector switch that offers a 3-position operation with a K95 key mechanism, and is designed with Cam O configuration allowing for key removal in positions I, 0, and II. This precision-engineered component provides reliable and secure switching in control panels, machinery, and industrial systems where specific access control is critical. The robust design ensures endurance in demanding environments, making it highly suitable for applications requiring frequent use.

Type	Key Switch
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik06
Ip Front Protection	Ip65
Max No Modules	8
Mechanical Lifetime	50 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Rotary Positions	3 Positions
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained (a) - Rest (a) - Maintained (a)
Switching Angle Rotation Concat	60° Left / 60° Right
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.076
