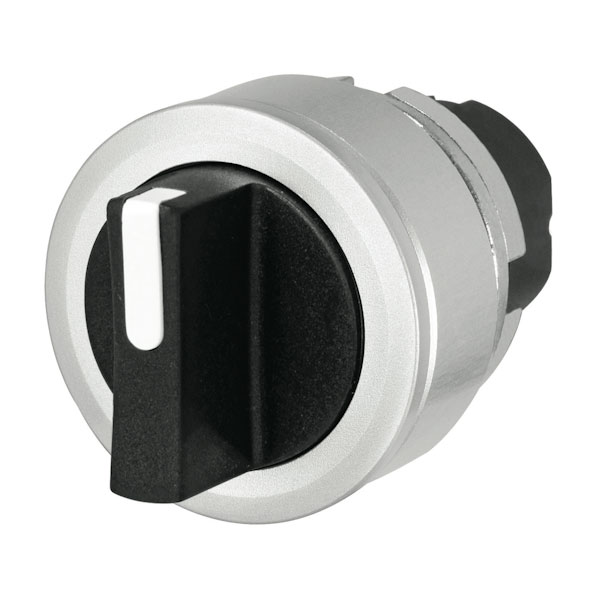

EAO 46-2844.4EV0.005 is a knob selector switch designed for precise control applications. This component features a black, flush-mount design with two distinct positions, allowing for straightforward user interaction. The selector switch incorporates a Cam B configuration, ensuring a reliable return mechanism from the right-hand position, which is particularly useful in operational settings where resetting is needed. Engineers commonly employ this switch in automation systems, control panels, and machinery operation theatres for its durability and intuitive usability.
| Type |
Selector Switch |
| Approbations |
Csa, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Flush |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Aluminium |
| Front Dimension Concat |
Ø 35mm |
| Front Form |
Round |
| Ik Front Protection |
Ik04 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
6 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
L |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Rest - Momentary |
| Switching Angle Rotation Concat |
45° Right |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.039 |
