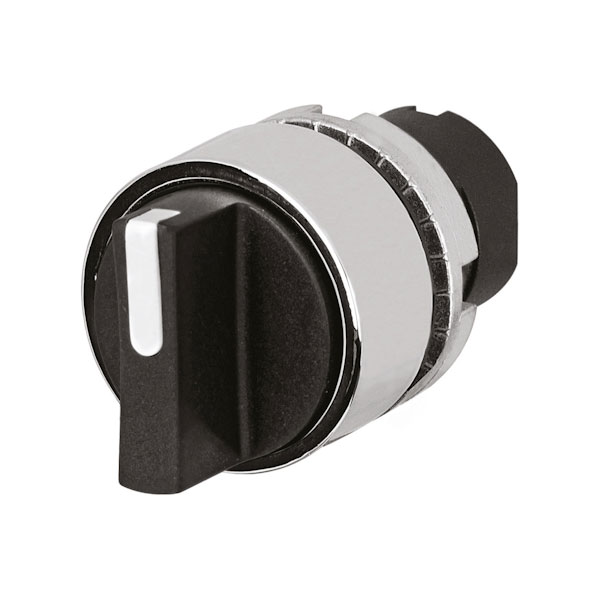

EAO 46-2828.3CV0.001 describes a robust knob selector switch characterised by its black, 2-position configuration, designated as Cam A. This switch is crafted from metal, offering enhanced durability and reliability suitable for demanding engineering environments. Typically employed in industrial control panels, machinery operations, and automation systems, the switchs design ensures consistent performance under various electrical loads. Its user-friendly interface facilitates straightforward operation, making it an integral component in controls requiring precise function toggling.
| Type |
Selector Switch |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Metal |
| Front Dimension Concat |
Ø 30mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
4 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
2 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Rest - Maintained |
| Switching Angle Rotation Concat |
90° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.038 |
