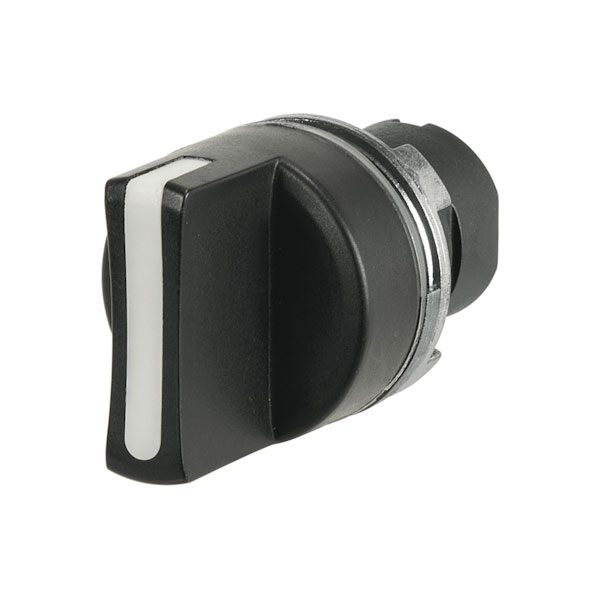

EAO 46-2819.1CV0.008 is a knob selector switch designed with a white finish and configured for three-position operation. This switch is characterised by its robust construction and reliable performance, making it suitable for use in demanding industrial environments. It operates using a cam mechanism, which ensures precise positioning and durability over extended use. Common applications for this product include control panels, machinery equipment, and process control systems, where accurate selection and switching between different states or modes are required.
| Type |
Selector Switch |
| Approbations |
Csa, Eac, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 29mm |
| Front Form |
Round |
| Ik Front Protection |
Ik06 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
8 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
3 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Rest - Maintained |
| Switching Angle Rotation Concat |
60° Left / 60° Right |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.0274 |
