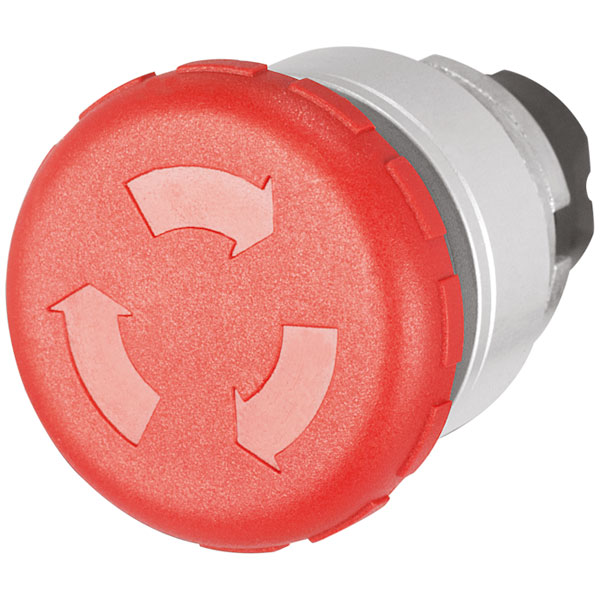

EAO 46-2736.4920.000 is a precision-engineered emergency stop mushroom push-button designed for safety-critical applications. This robust component features a 40 mm diameter flush-mounted red actuator, providing a clear and immediate visual indication for emergency shutdown functions. The push-button is equipped with a reliable twist-release mechanism, ensuring secure reset capabilities and preventing accidental reactivation. It is typically employed in industrial machinery, automation systems, and control panels where rapid access to a safety stop is paramount.
| Type |
E-Stop Pushbutton |
| IP Rating |
Ip65 |
| Approbations |
Csa, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Flush |
| Dimensions Concat |
Ø 40mm |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Silver |
| Front Bezel Material |
Aluminium |
| Front Dimension Concat |
Ø 40mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Lens Colour |
Red |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Mushroom-head |
| Max No Modules |
4 |
| Mechanical Lifetime |
50 000 Cycles Of Operation |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
L |
| Release Type |
Twist To Unlock |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Iec En 60947-5-5, Ul508, Uni En Iso 12100, Uni En Iso 13850 |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.05 |
