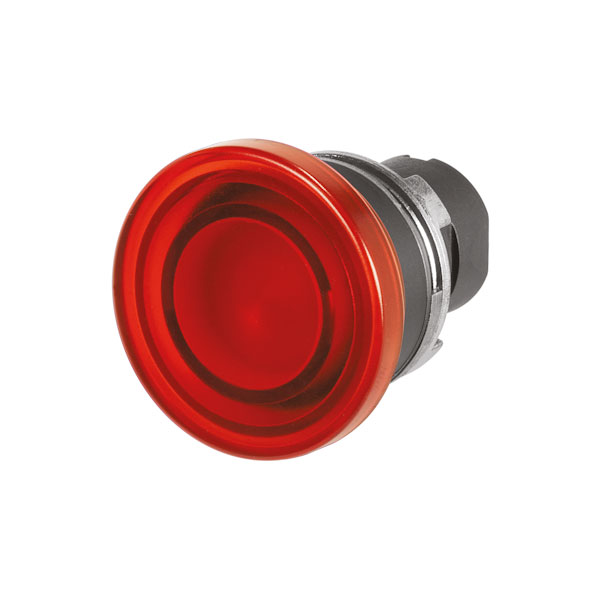

EAO 46-2631.1GE0.000 Mushroom push-button Ø 38, illuminated, red

EAO 46-2631.1GE0.000 is a high-quality mushroom push-button designed for industrial and engineering applications. It features a mushroom-shaped actuator with a diameter of 38 mm, providing an easily accessible and sizeable interface for emergency stop and control operations. The button is illuminated and red, maximising visibility in various environmental conditions, making it suitable for high-intensity or low-light settings. It is commonly used in machinery and equipment control panels, serving as an essential component in safety critical environments.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 38mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.024
