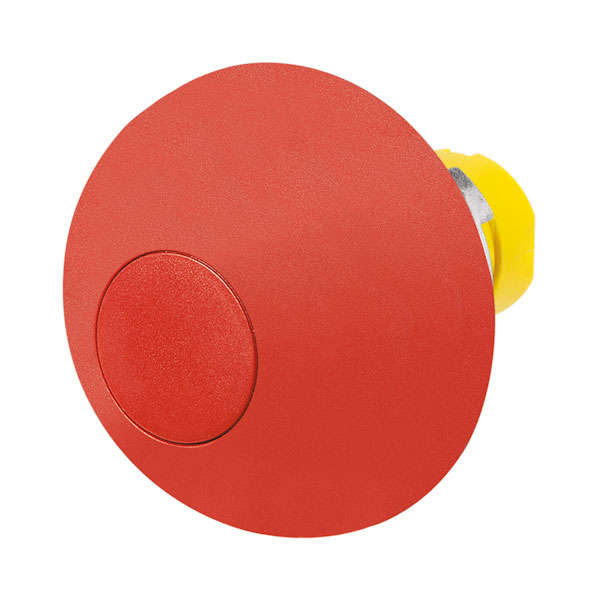

EAO 46-2531.1K20.000 Palm push-button Ø 50, big dome, momentary, red

EAO 46-2531.1K20.000 is a palm push-button designed with a large Ø 50 mm dome that provides a momentary switching function. The button is distinguished by its red colour, enhancing visibility for applications where emergency or immediate action is required. Constructed for robustness and reliability, this push-button is commonly utilised in industrial and machinery control systems, where an operator needs a large target area for quick, unerring interaction.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Yellow
Front Bezel Material	Plastic
Front Dimension Concat	Ø 50mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.038
