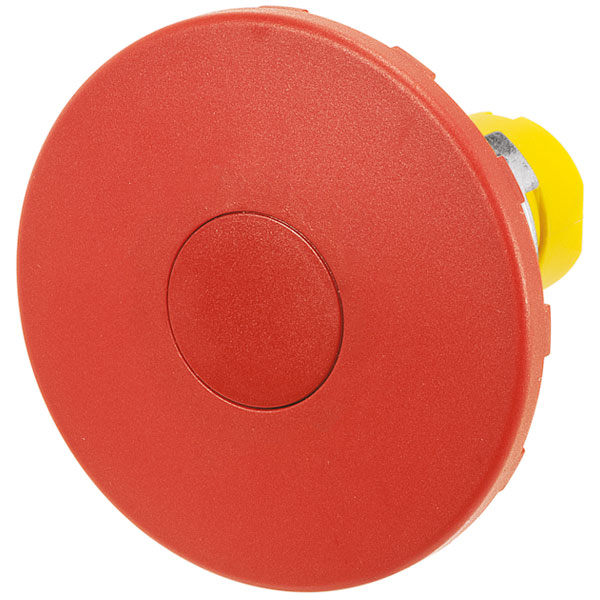

EAO 46-2531.1A20.000 Mushroom push-button Ø 60, momentary, red

EAO 46-2531.1A20.000 is a mushroom push-button with a diameter of 60 mm, designed for momentary operation, in a red colour. This push-button is constructed for use in industrial environments where control panel aesthetics and functionality are paramount, ensuring reliable performance under demanding conditions. Its robust design makes it suitable for applications such as emergency stop functions in machinery, equipment resets, and other control situations where a human-machine interface is required.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Yellow
Front Bezel Material	Plastic
Front Dimension Concat	Ø 60mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.036
