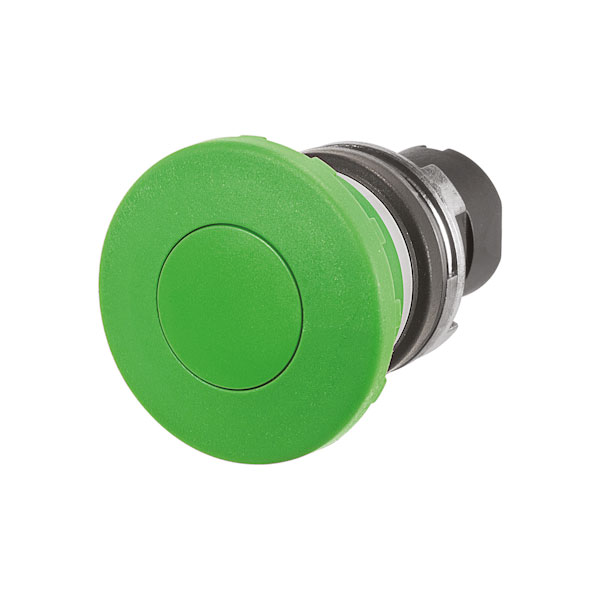

EAO 46-2531.1950.000 Mushroom push-button Ø 40, green

EAO 46-2531.1950.000 is a robust mushroom push-button designed with a 40 mm green actuator, suitable for rigorous industrial environments where visual indication and ease of operation are paramount. This switch is engineered to provide reliable performance under challenging conditions, making it suitable for use in control panels, machinery, and emergency shutdown systems. Its large, concave button surface allows for ease of activation, even while wearing protective gloves, ensuring safety and efficiency in various applications.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 40mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.036
