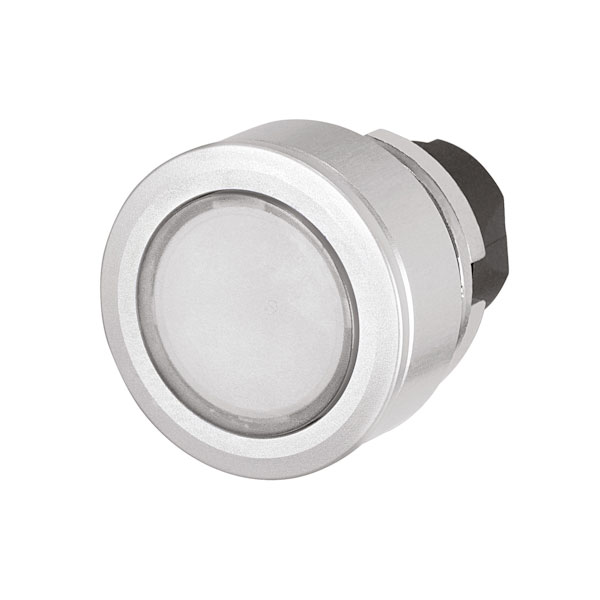

EAO 46-2234.4FK0.000 Push-button, illuminated, flush-mount, maintained, clear

EAO 46-2234.4FK0.000 is a push-button switch designed for applications requiring illuminated, flush-mount components with a maintained action mechanism. This switch features a clear actuator lens, allowing for indicator lights to show through, providing clarity in signal functions. The robust design of this push-button ensures reliable performance in engineering environments, making it suitable for use in control panels, industrial machinery, and public transport systems where visibility and user feedback are critical.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 35mm
Front Form	Round
Ik Front Protection	Ik04
Lens Colour	White
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	L
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.035
