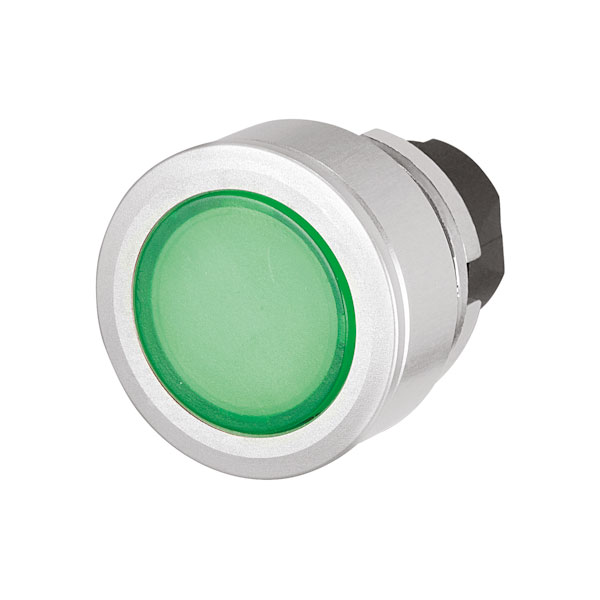

EAO 46-2234.4FH0.000 Push-button, illuminated, flush-mount, maintained, green

EAO 46-2234.4FH0.000 refers to a push-button that is illuminated, flush-mount, and maintained in operation, with a green actuator. This industrial component is designed to provide reliable actuation in control panels, machinery, and equipment where visual indication and sustained engagement are required. Its flush-mount design allows for a sleek, low-profile installation, contributing to both aesthetic considerations and operational efficiency by reducing accidental activation. The illumination feature aids in low light situations.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 35mm
Front Form	Round
Ik Front Protection	Ik04
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	L
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.035
