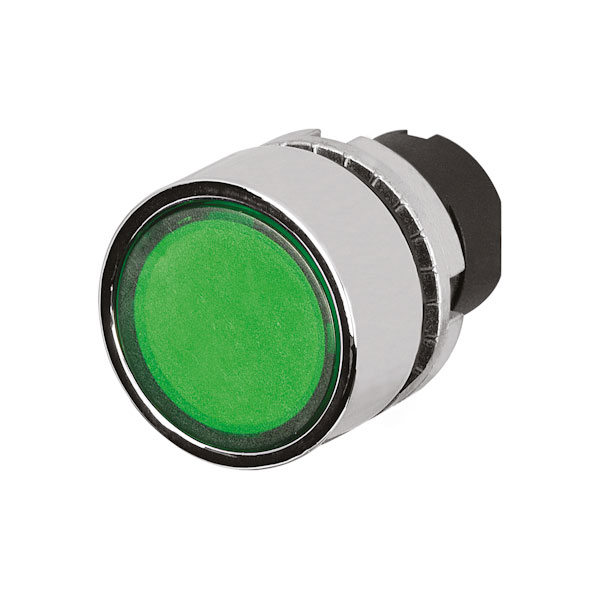

EAO 46-2234.31H0.000 Push-button, illuminated, maintained, green

EAO 46-2234.31H0.000 is a push-button switch featuring a maintained action with an illuminated green actuator. This component is ideally suited for control panels and machinery interfaces, providing clear visual feedback when engaged. Engineered for reliability, the switch operates with a consistent electrical performance, making it suitable for use in industrial automation systems and instrumentation. Commonly used in applications requiring robust human-machine interaction, this push-button is designed to withstand frequent use and harsh operating environments.

Type	Pushbutton
IP Rating	Ip65
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.033
