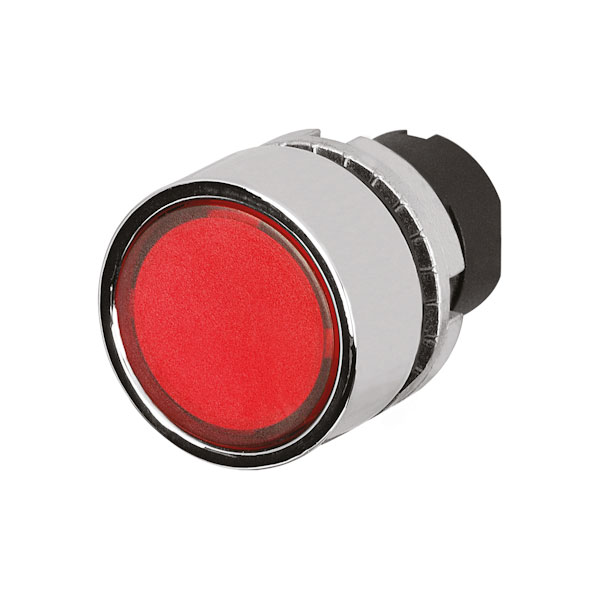

EAO 46-2234.31E0.000 Push-button, illuminated, maintained, red

EAO 46-2234.31E0.000 is a push-button switch, that is illuminated, maintained, with red indication. This push-button is engineered to provide reliable operation in various industrial environments, featuring a robust design that ensures longevity and consistent performance. The red illuminated feature allows for clear visibility in low-light or high-glare conditions, enhancing user interaction and safety. Typically utilised in control panels, machinery, and automotive applications, this maintained push-button is suitable for applications requiring a positive indication of operation.

Type	Pushbutton
IP Rating	Ip65
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.033
