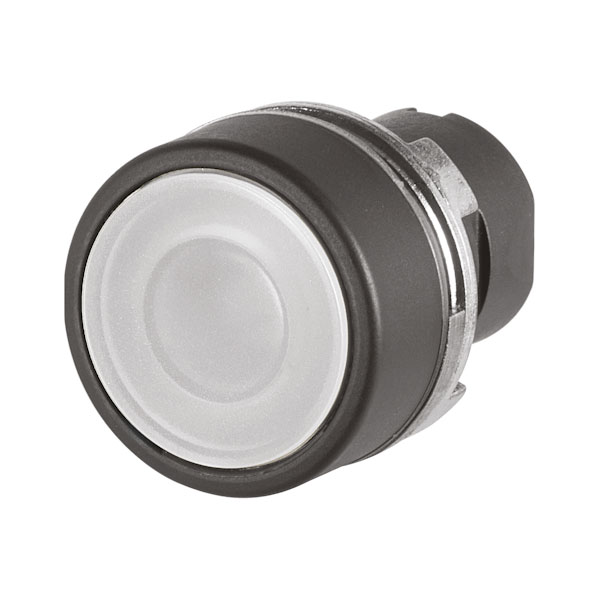

EAO 46-2234.11N0.000 Push-button, illuminated, maintained, white

EAO 46-2234.11N0.000 refers to a push-button that is illuminated, maintained, and white in colour. This device is designed for use in control panels and operator input applications, providing both visual feedback and reliable toggle capability. The maintained function allows the button to remain in its active state after being pressed, making it suitable for controlling persistent operations in industrial machinery or process control systems. The illumination feature enhances visibility in low-light environments, ensuring that operators can see when the pushbutton has been activated.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	White
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
