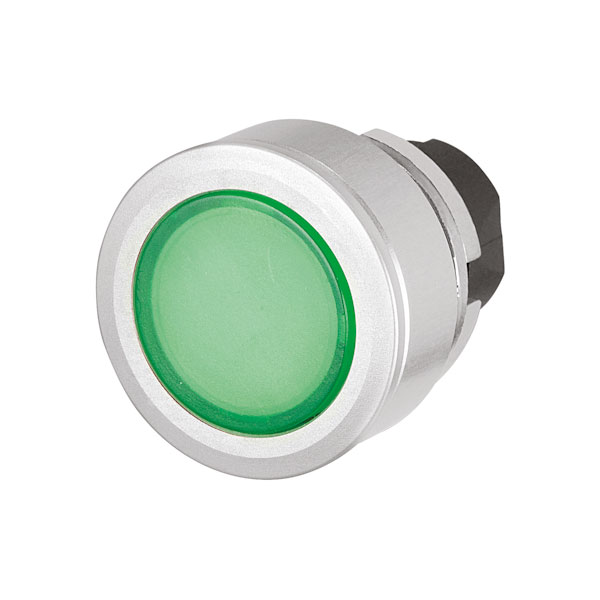

EAO 46-2231.4FH0.000 Push-button, illuminated, flush-mount, momentary, green

EAOs 46-2231.4FH0.000 is an illuminated, flush-mount, momentary push-button switch designed for use in a variety of electrical and electronic applications. This component features a green actuator, providing clear visual feedback when engaged, making it suitable for environments where quick identification of operational status is crucial. The push-buttons design supports integration into control panels and equipment where space-saving and aesthetic integration are paramount due to its flush-mount design.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 35mm
Front Form	Round
Ik Front Protection	Ik04
Lens Colour	Green
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	L
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.035
