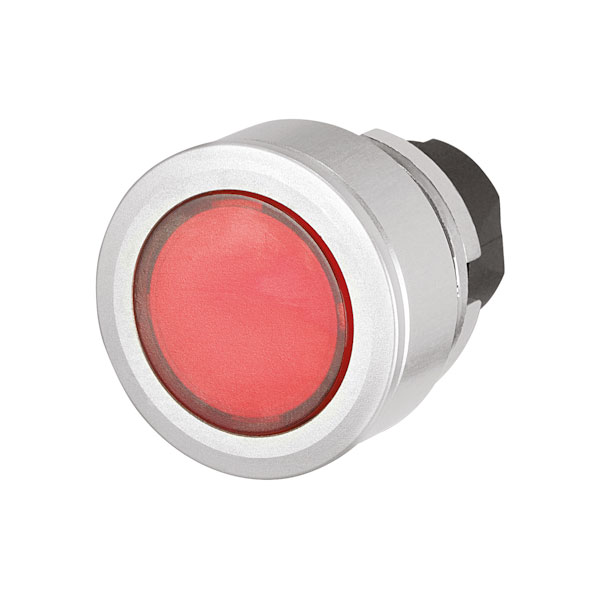

EAO 46-2231.4FE0.000 Push-button, illuminated, flush-mount, momentary, red

EAO 46-2231.4FE0.000 is an illuminated push-button designed for flush-mounting applications. This momentary red switch is highly suitable for use where space is constrained and a seamless interface is required, due to its low-profile design. The illumination enhances visibility in low-light conditions and the unit features reliable and precise tactile feedback. It is ideal for use in control panels, instrumentation, and other industrial or commercial applications where user interaction is crucial.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Flush
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Aluminium
Front Dimension Concat	Ø 35mm
Front Form	Round
Ik Front Protection	Ik04
Lens Colour	Red
Lens Illumination	Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	L
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.035
