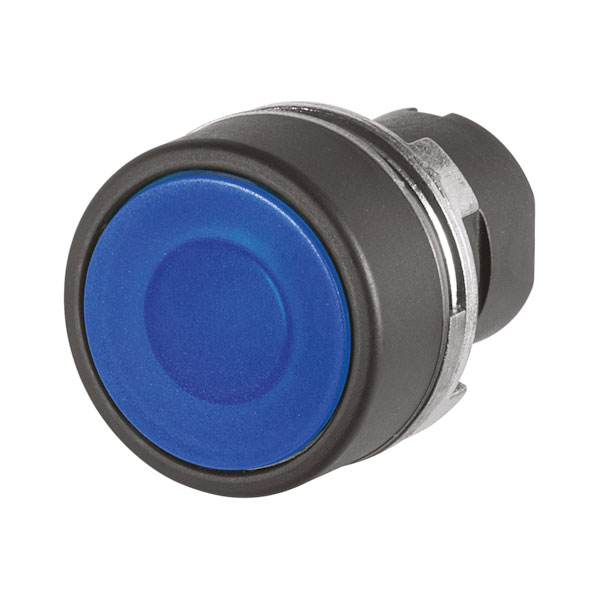

EAOs 46-2231.11J0.000 is a guarded push-button assembly with illumination capabilities, specifically designed to enhance operator interface safety and visibility in control panels. It features a blue illuminated button that provides clear status indication, particularly useful in environments requiring distinct visual cues for system status or alerts. The robust construction of the push-button ensures reliability in demanding industrial applications, delivering consistent performance under various operational conditions. Typical engineering applications for this component include control consoles, machinery control units, and control panels.
| Type |
Pushbutton |
| IP Rating |
Ip65 |
| Approbations |
Csa, Eac, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 29mm |
| Front Form |
Round |
| Ik Front Protection |
Ik03 |
| Lens Colour |
Blue |
| Lens Illumination |
Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Flush |
| Max No Modules |
8 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Momentary |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.019 |
