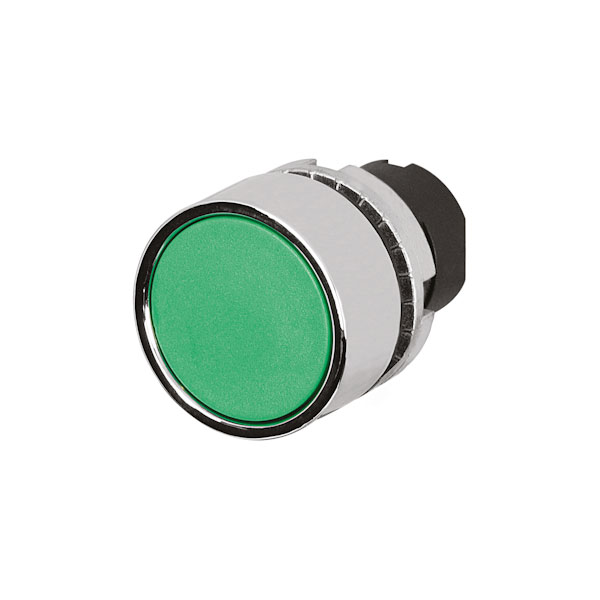

EAO 46-2134.3150.000 Guarded push-button, maintained, green

EAO 46-2134.3150.000 is a guarded push-button, maintained switch designed for various industrial applications. This push-button is distinguished by its durable green actuator, which remains in its selected state until manually reset, making it ideal for operations that require persistent signal toggling. Typically integrated into control panels, machinery, and automation systems, it ensures operational reliability while providing clear visual status indication, thanks to its prominently coloured actuator. The guarded design enhances safety by reducing the risk of accidental activation.

Type	Pushbutton
IP Rating	Ip65
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Silver
Front Bezel Material	Metal
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	6
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.033
