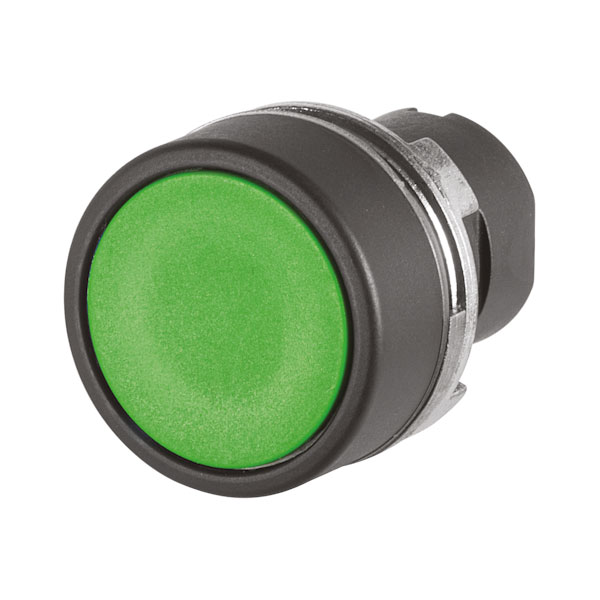

EAO 46-2134.1150.000 Guarded push-button, maintained, green

EAO 46-2134.1150.000 is a guarded push-button designed for use in various industrial and engineering applications. This maintained, green push-button is notable for its robust construction, ensuring reliable operation under demanding conditions. The guard protects the button from accidental activation, making it suitable for use in environments where safety and precision are paramount. Common applications for this component include control panels, machinery operator interfaces, and process control systems, where assured actuation and clear signalling are required.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Green
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	4
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Maintained
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.019
