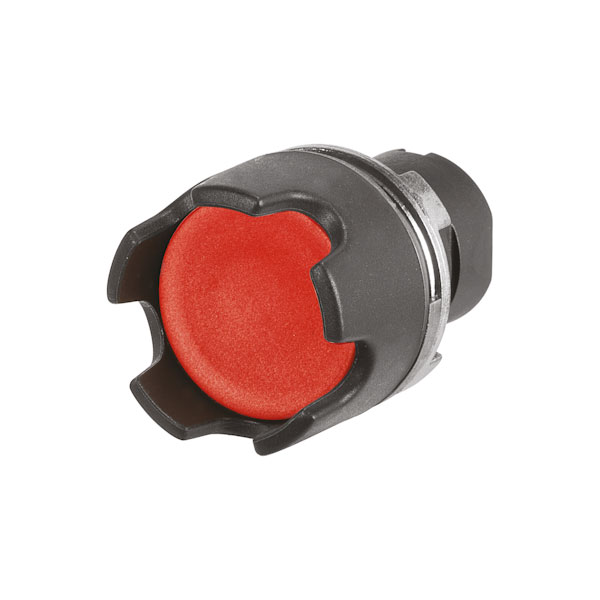

EAO 46-2131.1420.000 Push-button with extended guard, red

EAOs 46-2131.1420.000 is a push-button with an extended guard, specifically designed with a red actuator for increased visibility and user safety. This push-button is built to withstand rigorous operational environments, making it ideal for use in industrial control panels and machinery that require reliable human-machine interface (HMI) solutions. The extended guard feature ensures enhanced protection against accidental activation, which is crucial in settings where inadvertent machine operation can lead to safety hazards or equipment damage.

Type	Pushbutton
IP Rating	Ip65
Approbations	Csa, Eac, Ul
Climate Resistance	+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30)
Conformities	Ce
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	It
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29mm
Front Form	Round
Ik Front Protection	Ik03
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Max No Modules	8
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 55°C
Output Hsd	Yes
Protection Class	Ll
Shock Resistance	30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27)
Standards Norms	Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508
Switching Action Concat	Momentary
Vibration Resistance	5g F= 2...500hz (en-iec 60068-2-6)
Weight	0.023
