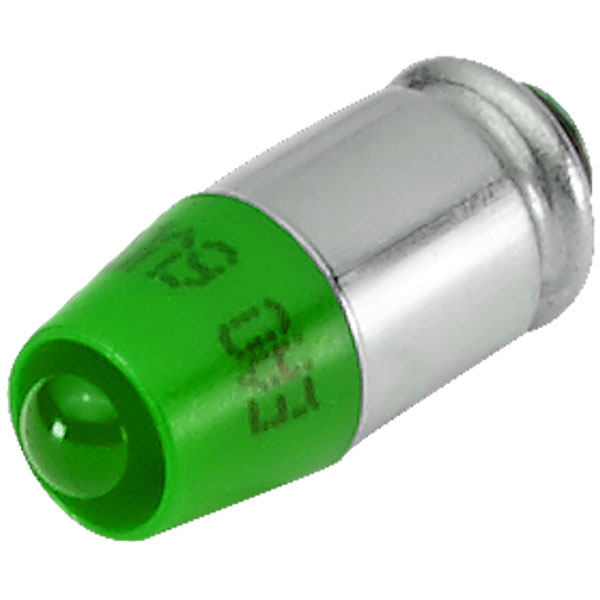

EAO 10-2J12.1065 LED single T1 3/4 MG green 24VAC/DC 7/14mA half-wave rect.

EAO 10-2J12.1065 is an LED indicator lamp, featuring a single T1 3/4 MG format with a green light emission. The device operates efficiently within a range of 24VAC/DC with a current requirement of approximately 7 to 14mA, benefiting from a half-wave rectification system. These technical specifications make it suitable for various industrial and commercial applications, including use in control panels, automotive dashboards, and equipment status displays.

Type	LED
Operating Voltage	24V
Dom Wavelength Concat	525 Nm
Erp Ehq Custom Number	8539.5200
Erp Ehq Source Country	De
Illumination Colour Concat	Green
Luminosity Concat	1050 Mcd
Operating Concat	24 V +10% / 4 - 7 Ma ±15 %
Operating Current Concat	4 - 7 Ma ±15 %
Operating Voltage 1 Concat	24 V
Operating Voltage Concat	24 V Ac/dc +10%
Output Hsd	Yes
Weight	0.001
