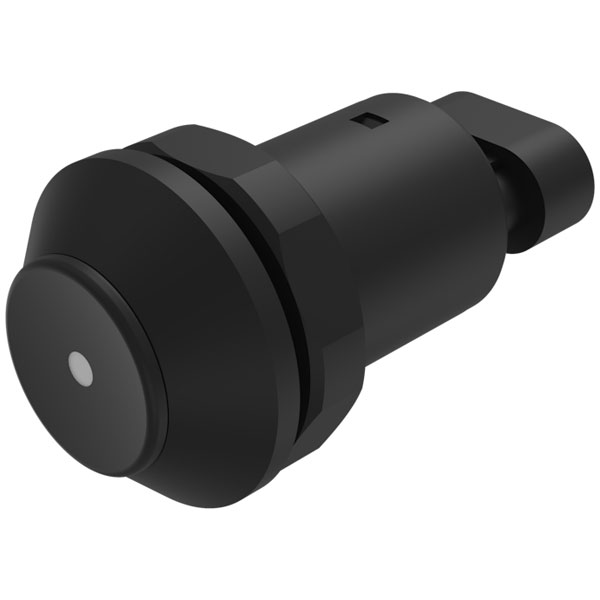

EAO 09-RS.1203.0022.M000 Series 09 Rugged Outdoor Switch, Black with Red Illumination, is designed for use in demanding environmental conditions. The switch features a robust construction suitable for outdoor applications, offering resistance to water, dust, and mechanical impact. It is equipped with an efficient illumination system that provides clear visibility under low light conditions, enhancing operational safety and reliability. This switch is typically utilised in transportation systems and industrial control panels.
| Type |
Pushbutton |
| Contact Configuration |
SPNO |
| Mounting |
Panel |
| Panel Cutout Dimensions |
30 |
| Approbations |
Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009) |
| Climate Resistance |
100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle |
| Conformities |
Ce |
| Contacts Concat |
1 No |
| Contacts Material |
Rhodium/silver |
| Design |
Raised |
| Electrical Lifetime |
1 Mil. Cycles Of Operation |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Bezel Shape |
Raised |
| Front Dimension Concat |
Ø 39mm |
| Front Form |
Round |
| Illumination Colour Concat |
Red |
| Ip Front Protection |
Ip67 (iso 20653) |
| Lens Colour |
Black |
| Lens Illumination |
Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Concave |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Concat |
24 V +4 |
| Operating Temperature |
– 20 °c … + 100 °c (din En 60068-2-64) |
| Operating Voltage 1 Concat |
24 V |
| Operating Voltage Concat |
24 V Dc (led) +4 |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Symbol |
No Symbol |
| Terminal Concat |
1.5 Series Amp Superseal 3 Pin Connector |
| Thermal Current Ith |
0.2 A |
| Vibration Resistance |
Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis |
| Weight |
0.04 |
