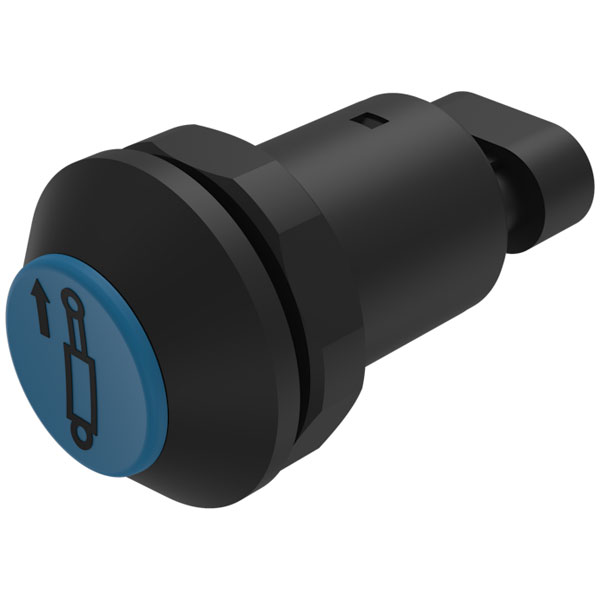

EAO 09-RS.1101.6100.M002 is a rugged outdoor switch, designed to ensure reliable performance in demanding environmental conditions. This switch is part of the Series 09 and is marked with a blue colour and an "Extend Arm" symbol, which indicates its specific functionality. Engineered for robustness, the device is equipped with a durable housing to withstand harsh weather conditions and potential physical impact, making it suitable for use in industrial, transportation, and machinery applications.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Mounting |
Panel |
| Illumination |
Blue |
| Panel Cutout Dimensions |
30 |
| Approbations |
Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009) |
| Climate Resistance |
100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle |
| Conformities |
Ce |
| Contacts Concat |
1 No |
| Contacts Material |
Rhodium/silver |
| Design |
Raised |
| Electrical Lifetime |
1 Mil. Cycles Of Operation |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Bezel Shape |
Raised |
| Front Dimension Concat |
Ø 39mm |
| Front Form |
Round |
| Ip Front Protection |
Ip67 (iso 20653) |
| Lens Colour |
Blue |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Concave |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Concat |
12 - 48 V |
| Operating Temperature |
– 20 °c … + 100 °c (din En 60068-2-64) |
| Operating Voltage 1 Concat |
12 - 48 V |
| Operating Voltage Concat |
12 - 48 V Dc |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Symbol |
Extend Arm |
| Terminal Concat |
1.5 Series Amp Superseal 3 Pin Connector |
| Thermal Current Ith |
0.5 A |
| Vibration Resistance |
Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis |
| Weight |
0.04 |
