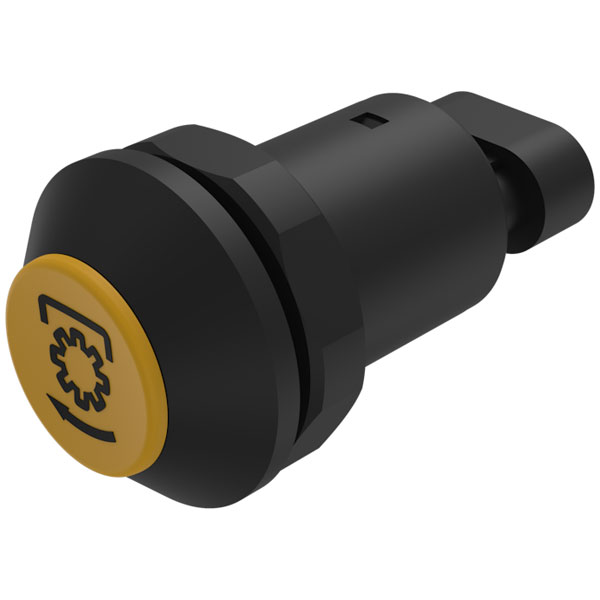

EAO 09-RS.1101.4100.M001 Series 09 Rugged Outdoor Switch, Yellow, "PTO" Symbol

EAO 09-RS.1101.4100.M001 Series 09 Rugged Outdoor Switch is designed for demanding environments and features a yellow body with a clearly marked PTO symbol for increased visibility and functionality. Engineered to withstand harsh weather conditions, the switch is both water and dust resistant, adhering to stringent IP ratings that ensure reliable operation in challenging outdoor settings. Its robust construction and dependable performance make it suitable for applications such as agricultural machinery, construction equipment and industrial vehicles.

Type	Pushbutton
Contact Configuration	SPDT NO/NC
Mounting	Panel
Illumination	Yellow
Panel Cutout Dimensions	30
Approbations	Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009)
Climate Resistance	100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle
Conformities	Ce
Contacts Concat	1 No
Contacts Material	Rhodium/silver
Design	Raised
Electrical Lifetime	1 Mil. Cycles Of Operation
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Bezel Shape	Raised
Front Dimension Concat	Ø 39mm
Front Form	Round
Ip Front Protection	Ip67 (iso 20653)
Lens Colour	Zinc Yellow
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Concave
Mechanical Lifetime	1 Mil. Cycles Of Operation (rcc/rpb)
Mounting Cut Out Dps Concat	Ø 30mm
Operating Concat	12 - 48 V
Operating Temperature	– 20 °c … + 100 °c (din En 60068-2-64)
Operating Voltage 1 Concat	12 - 48 V
Operating Voltage Concat	12 - 48 V Dc
Output Hsd	Yes
Switching Action Concat	Momentary
Symbol	Pto
Terminal Concat	1.5 Series Amp Superseal 3 Pin Connector
Thermal Current Ith	0.5 A
Vibration Resistance	Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis
Weight	0.001
