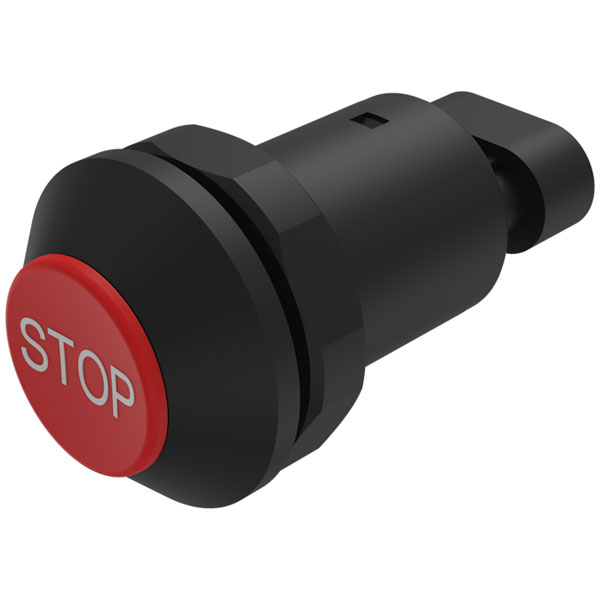

EAO 09-RS.1101.2900.M004 Series 09 Rugged Outdoor Switch is a robust and durable component designed for demanding environments. Featuring a red actuator with a clearly visible stop symbol, this switch is ideal for use in safety-critical applications where immediate stop functionality is required. Engineered to meet high environmental standards, it is resistant to dust, moisture, and extreme temperatures, making it suitable for outdoor use in industries such as transportation, industrial automation, and emergency services.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Switch Function |
N/A |
| Mounting |
Panel |
| Panel Cutout Dimensions |
30 |
| Approbations |
Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009) |
| Climate Resistance |
100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle |
| Conformities |
Ce |
| Contacts Concat |
1 No |
| Contacts Material |
Rhodium/silver |
| Design |
Raised |
| Electrical Lifetime |
1 Mil. Cycles Of Operation |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Bezel Shape |
Raised |
| Front Dimension Concat |
Ø 39mm |
| Front Form |
Round |
| Ip Front Protection |
Ip67 (iso 20653) |
| Lens Colour |
Red |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Concave |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Concat |
12 - 48 V |
| Operating Temperature |
– 20 °c … + 100 °c (din En 60068-2-64) |
| Operating Voltage 1 Concat |
12 - 48 V |
| Operating Voltage Concat |
12 - 48 V Dc |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Symbol |
Stop |
| Terminal Concat |
1.5 Series Amp Superseal 3 Pin Connector |
| Thermal Current Ith |
0.5 A |
| Vibration Resistance |
Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis |
| Weight |
0.04 |
