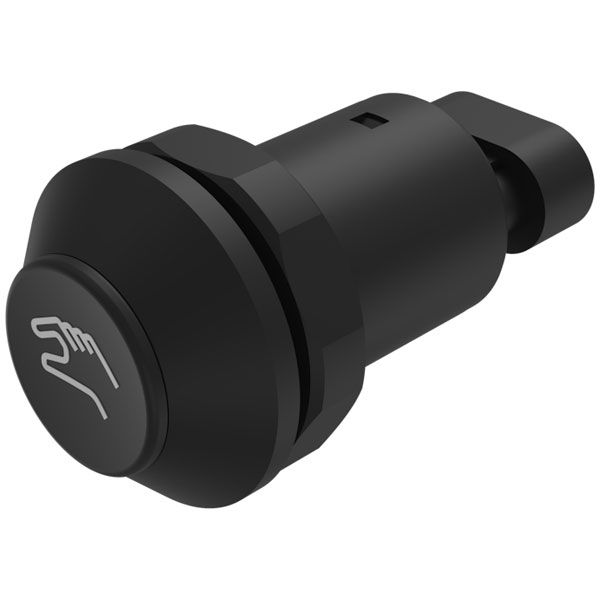

EAO 09-RS.1101.0900.M007 is a rugged outdoor switch designed for demanding environments. This series 09 switch is characterised by its durable black housing and the inclusion of a "Dead Man" symbol, ensuring it is easily identifiable in emergency situations. Engineered for reliability, it features robust sealing against dust and water ingress, meeting industry standards for outdoor use. Its applications typically include transportation systems, industrial machinery, and public safety stations, where reliability and durability are essential.
| Type |
Pushbutton |
| Contact Configuration |
SPDT NO/NC |
| Mounting |
Panel |
| Panel Cutout Dimensions |
30 |
| Approbations |
Emc (en Iso 13766-1:2018) , Emc (en Iso 14982:2009) |
| Climate Resistance |
100 Cycles (- 20 °c ... + 100 °c), With 25min At High Temperature, 20 Min At Low Temperature Level Per Cycle |
| Conformities |
Ce |
| Contacts Concat |
1 No |
| Contacts Material |
Rhodium/silver |
| Design |
Raised |
| Electrical Lifetime |
1 Mil. Cycles Of Operation |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Bezel Shape |
Raised |
| Front Dimension Concat |
Ø 39mm |
| Front Form |
Round |
| Ip Front Protection |
Ip67 (iso 20653) |
| Lens Colour |
Black |
| Lens Illumination |
Non Illuminated |
| Lens Material |
Plastic |
| Lens Shape |
Concave |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 30mm |
| Operating Concat |
12 - 48 V |
| Operating Temperature |
– 20 °c … + 100 °c (din En 60068-2-64) |
| Operating Voltage 1 Concat |
12 - 48 V |
| Operating Voltage Concat |
12 - 48 V Dc |
| Output Hsd |
Yes |
| Switching Action Concat |
Momentary |
| Symbol |
Dead Man |
| Terminal Concat |
1.5 Series Amp Superseal 3 Pin Connector |
| Thermal Current Ith |
0.5 A |
| Vibration Resistance |
Vibration Tl80101 (2006-10) Chapter 4.1.4 Test Severity Level 3, Test Conditions According Din En 60068-2-64 Test Duration 2 Hours Per Spatial Axis |
| Weight |
0.04 |
