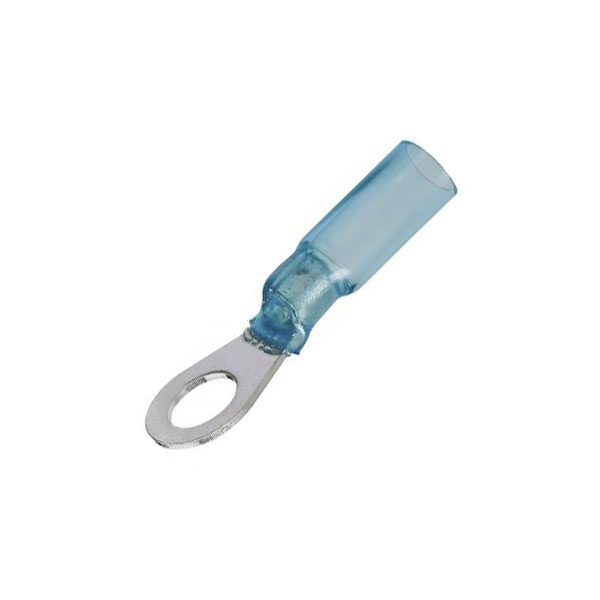

DSG-Canusa 7932200502 Ring Terminal + Heatshrink, 2.50 mm², Blue, 4 mm Hole

DSG-Canusa
Order Code:

11-7030

Brand: DSG-Canusa MPN: 7932200502 EAN-13: 2050000169915
Qty Unit Price (Ex VAT)
20+ £0.336
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
533 in stock, despatched in 4 working days

The DSG Canusa 7932200502 is a ring terminal with heatshrink designed for a maximum cross section of 2.50 mm² and features a 4 mm hole. This partially insulated blue connector is ideal for secure, solder-free connections in automotive electrical applications. It is suitable for use in environments requiring durable and reliable crimp connectors.
Colour Blue
Insulated Partially insulated
Stud Size 4mm
Maximum Wire Size (mm2) 2.50mm²
Cable cross section 1.5 - 2.5mm²
Contact Material Copper silver plated
Cross Section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Hole Ø 4mm
Material (details) Tinned copper
max. cross section 2.50mm²
Maximimum Wire Gauge (AWG) 14
Min. cross section 1.50mm²
Product Type Ring Terminal
Shrink Temperature +100 - +200°C
Support sleeve No
Temperature Range -55 - +125°C
Thread Size M4
