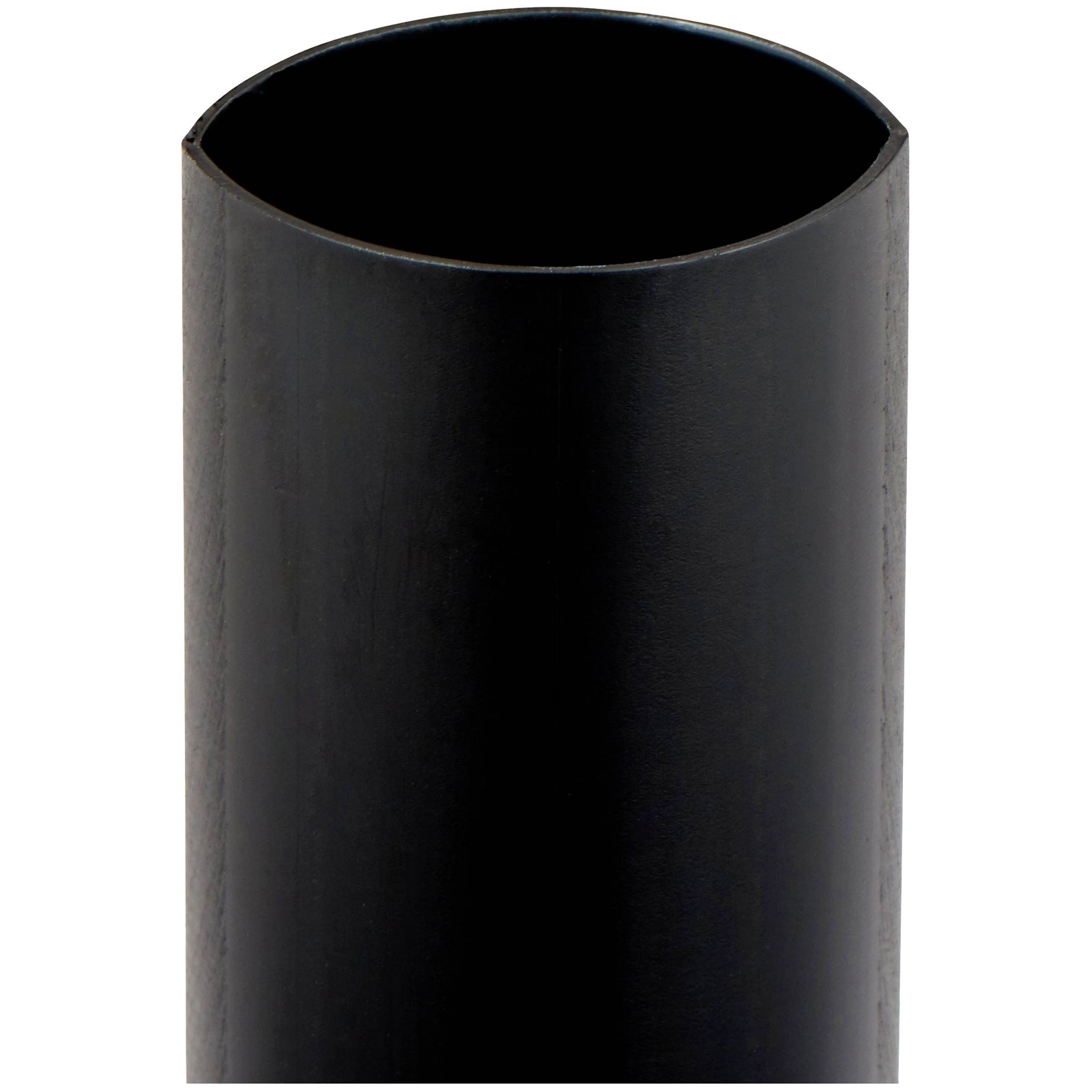

DSG Canusa 6110030953 Black Adhesive Heat Shrink Tubing 3:1 3mm

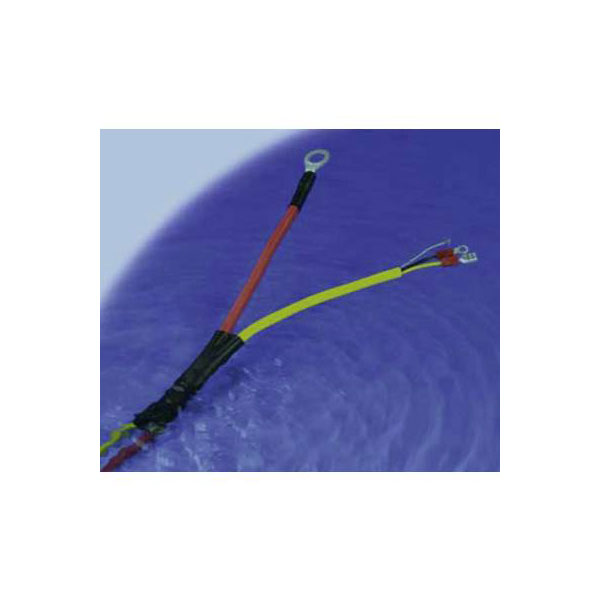

This adhesive heat shrink tubing from DSG Canusa has a shrink ratio of 3:1. The adhesive on the inside of the tubing melts to produce effective, leakproof insulation of electrical connections, junctions, splices and components.

• Shrink ratio 3:1
• Shrinking temperature +95 to +200°C
• Dielectric strength 20KV/mm min. according to VDE 0303 Part 2
• Elongation at break 500% min according to IEC 60684
• Tensile strength 17MPa to IEC 60684-2
• Colour: Black
• Nominal diameter (post-shrinkage): 1mm
• Nominal diameter (pre-shrinkage): 3mm
• Manufacturer's part 6110030953

This heat shrink will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 5 metres will result in a single 5-metre strip being supplied, not 5 one-metre lengths.

Colour	Black
Length	1000mm
Ratio	3:1
Shrunk Diameter	1mm
Supplied Diameter	3mm
